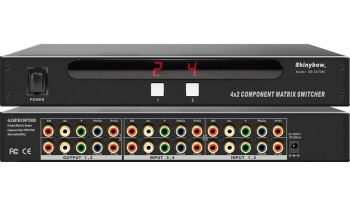

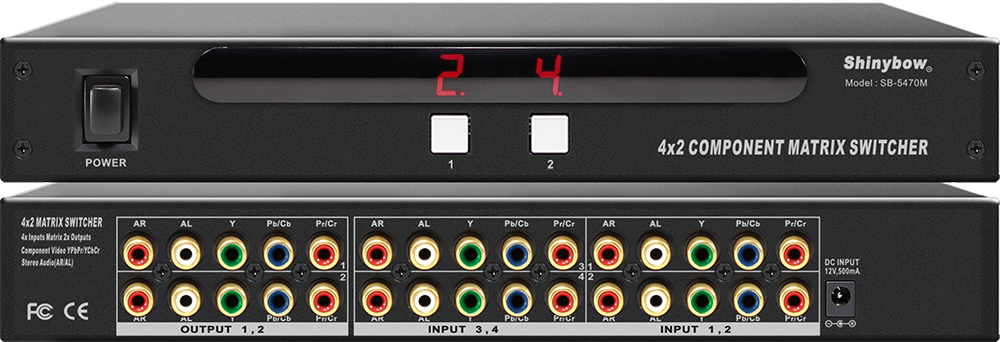

4x2 COMPONENT AUDIO MATRIX SWITCHER
- 產品介紹
- 產品特色
- 產品規格
-
SB-5470 is a high speed Video Bandwidth 250MHz,Maximum
300MHz Matrix Router Switcher product. It’s one of the most
innovative Component Video(YPbPr), and Stereo Audio(AR/AL)
switching products on the market today. Support 19 inch Ear
mount pair part number #1U-300L and MRM is 19 inch 1RU
Rack mount type. It has 4 individual inputs with 2 individual
outputs. Because it is a matrix router, any input may be routed
to any output;or the same input may be routed to all outputs or any
combination.It completely eliminates the need to constantly move
around Component Video and Stereo Audio input and output
cables.This matrix switcher is ideally suited for full High Definition
LCD HDTV for resolution 480p, 720p, 1080i and1080p or
Plasma display monitor applications. Control is provided
via front pushbuttons with LED readout or IR remote
controller.
-
1. Support 4 inputs to 2 outputs Component-Audio Matrix Switcher 2. Support HDTV Resolution 480i, 480p, 576p, 720p, 1080i and 1080p 3. Video Bandwidth : 250MHz (-3dB), 200 mVp-p 4. Audio bandwidth : 60MHz. compatible Composite Video 5. Audio Frequency Respond : 20Hz ~ 20KHz 6. Low all hostile crosstalk of -83 dB @ 5 Mhz 7. Infrared : IR Remote Control via Frequency (38Khz) 8. Signals switch including: Component Video YPBPR, Stereo Audio (AR/AL) 9. Suitable for full HD high resolution Video player device and LCD/Prasma monitor displays 10. Direct selection and confirm via Front pushbuttons with LED readout 11. Enclosure type : Support 19 inch Ear & 1RU Rack mountable panel 12. Support Lower power consumed full load under 450 mA 13. Power supply offer a universal type 100~230 VAC switch -
1. Type of switcher : 4 inputs to 2 outputs Component-Audio Matrix Switcher 2. Video Bandwidth : 250MHz, (-3 dB) 200 mV p-p, 300MHz, (-3 dB) 2V p-p, R=250MHz, G=250MHz, B=250MHz, Audio=60MHz 3. Audio Bandwidth : 60MHz, (-3dB) (Audio-Right=60MHz, Audio-Lift=60MHz) 4. Audio Frequency Respond :20Hz ~20KHz 5. All Hostile Crosstalk : -84 db @ 5 MHz, -54 dB @ 50 MHZ 6. Channel Crosstalk : -56 db @ 100 Mhz 7. Slew Rate : 1000 V/us, G=+1,2 V Step 8. Controls : IR Remote Controller(38KHz), Front panel selection buttons with LED readout 9. Safety Approvals : CE, FCC, RoHS(2002/95/EC) 10. Dimensions (W.D.H.) : SB-5470 9.45" (240mm) x 5.71" (145mm) x 1.77" (45mm) SB-5470M 11.97" (304mm) x 6.06" (154mm) x 1.73" (44mm) 11. Net Weight (Unit Only) : About 0.5kg/1.1 lb(SB-5470) About 1.4kg/3.09 lb(SB-5470M) (with metal case) 12. Power Voltage Input : DC 12V @ 0.66A
