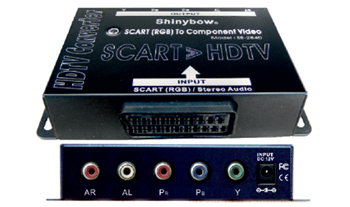

SB-2840
SCART-RGB CONVERT
SCART-RGB CONVERT
Inputs :
1x SCART(RGB), 1x Stereo Audio
Outputs :
1x Component Video (YPBPR), 1x Stereo Audio
- 產品介紹
- 產品特色
- 產品規格
-

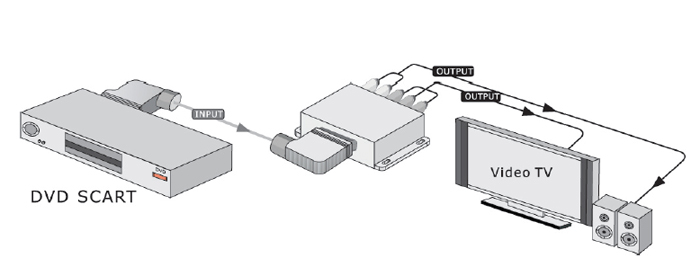

The SB- 2840 is one of the most innovative converter, which can convert SCART (RGB/Stereo Audio) to YUV Component Video(YPBPR/YCBCR)/ Stereo Audio Signals. This product is suitable for distributing signals from SCART- RGB DVD or high resolution SCART-RGB video source to HDTV displays at high resolutions.
-
1. SCART To SDTV Component Video/ Audio Converter 2. Support Component Y/Pb/Pr, Y/CbCr.1.00Vpp/75Ω, Stereo Audio(AR/AL) 3. Video Bandwidth: 110MHz (-3dB), 200 mVp-P 4. YUV output for SDTV 480i ( 13.50MHz) , 480P ( 27.00MHz) 5. Gain Flatness: 0.1dB to 20 Mhz, RL=150Ω 6. Differential Gain Error 0.03%, RL=150Ω 7. Differential Phase Error 0.030,RL=150Ω 8. Switching SCART in TV monitors and plasma displays 9. Suitable for 480I, 480P 10. Terminals: SB-2840 use RCA connectors, SB2839 use BNC female connectors. 11. Enclosure: Support wall mountable 12. Safety approvals: CE, FCC, RoHS(2002/95/EC) 13. Dimensions: 5.04”x 2.85”x 1.08” (128mmx72.5mm*27.5mm) 14. Power Supply: DC12V / 0.42A 15. Net Weight (unit only) :0.3 Kgs / 0.66 lb
