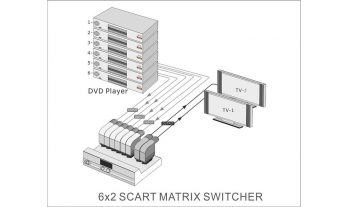

6x2 SCART MATRIX SWITCHER
| Input : 6x SCART via Scart Female Connectors |
| Output : 2x SCART via Scart Female Connectors |
- Introduction
- Features
- Specifications

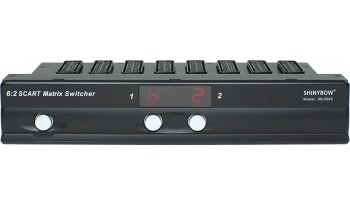

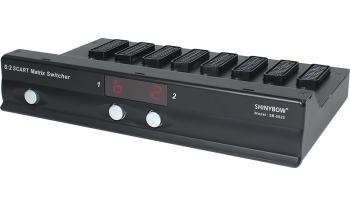

- SB-5525 is a 6:2 MATRIX SCART RGB/S-Video (Y/C)/ Composite Video/ Stereo Audio switching product. The switcher supports 6 individual inputs with 2 individual outputs. The matrix function of SB-5525 can be routed any input and output to each other. The switcher completely eliminates the need to constantly move around SCART input and output cables. It is ideally suitable for High Resolution TV applications. Control is provided via Front pressed buttons with LED readout or IR remote controller.
-
1. Support SCART 6 inputs To 2 Outputs Matrix Switcher 2. Inputs:6x SCART (RGB, S-Video, Composite Video and Stereo Audio)
Outputs:2x SCART (RGB, S-Video, Composite Video and Stereo Audio)3. SCART Group input/output Signals included
• RGB
• S-Video (Y/C)
• Composite Video
• Audio:Stereo Audio (AR, AL)4. Refresh:for HDTV 480i, 480p, 576p, 720p, 1080i, 1080p 5. Control By IR Remote and Direct Selection by Front Panel express Buttons 6. Inputs status with LED display Read Out via front Panel 7. Support ON/OFF Power switch on Front Panel -
Type of Switcher 6 in To 2 out SCART Matrix Switcher Type of Signal SCART (RGB, S-Video, Composite Video and Stereo Audio) Video Bandwidth 110 MHZ, -3dB (G=+2) High Speed and fast settling on 5V IR Frequency 38KHz Low Power 4.4 mA/Amplifier Scan Rates Accepted 50Hz or 60Hz Monitor screen Auto Scan 16:9 or 4:3 Lower power consumed consumed full load under 650/400Ma Controls IR remote controller, front pushbuttons with LED readout Safety approvals CE, FCC Dimension (WxDxH) 9. 37" x 5. 67" x 1.83" (238mm x 149mm x 44mm) Power Supply DC12V / 2A Weight 0.9 kg / 1.98 lb
