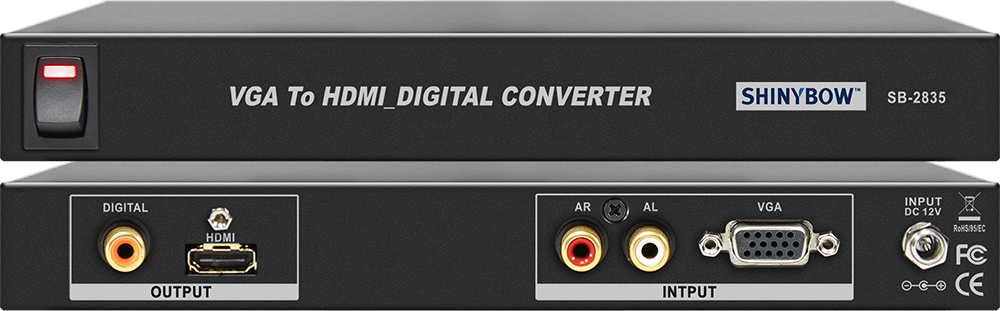

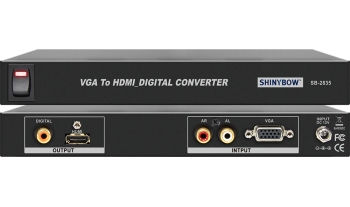

VGA To HDMI CONVERTER
SB-2835
VGA To HDMI CONVERTER
Input : 1x VGA, 1x Stereo Audio
Output : 1x HDMI (Video+Audio), 1x Digital Audio
  • Introduction
  • Features
  • Specifications
  • 01. VGA to HDMI Converter
    02. Inputs : 1x VGA (RGBHV) & 1x Stereo Audio (AR/AL)
          Outputs : Video : 1x HDMI (Digital Video + Digital Audio)
          Audio : 1x Digital Audio (PCM)
    03. Automatically detects for VGA, SVGA, XGA signal
    04. Highest input resolution is SXGA (1280x1024)
    05. Output automatically scan HDMI resolution of 480p, 720p or 1080i/p
    06. Support HDMI version 1.3 with HDCP Compliant
    07. Support audio (PCM) outputs
  • Video / Audio Input Signals VGA (RGBHV) 1x HD-15p Female Connector
    Stereo Audio(AR/AL) 2x via RCA Connectors
    Video / Audio outputs Signals HDMI, 1x HDMI connector
    Digital Audio (PCM) 1x via RCA connector
    Video Bandwidth 450MHz, (-3dB), Audio Bandwidth : 50MHz, (-3dB)
    Audio Frequency Respond 20Hz~20KHz
    Safety Approvals CE, FCC
    Dimension (WxDxH) 8.27" x 4.49" x 1.06" (210mm x 114mm x 27mm)
    Power Supply 12VDC, Universal type 50/60Hz 100~230 VAC, 2A
    Weight 0.7 kg / 1.54 lb
