SB-3688
Video To HDMI Scaler Switcher
Input : 1x Video / Audio, 1x S-Video / Audio
Output : 1x VGA / Audio, 1x HDMI / S/PDIF, 1x Video / Audio
  • Introduction
  • Features
  • Specifications

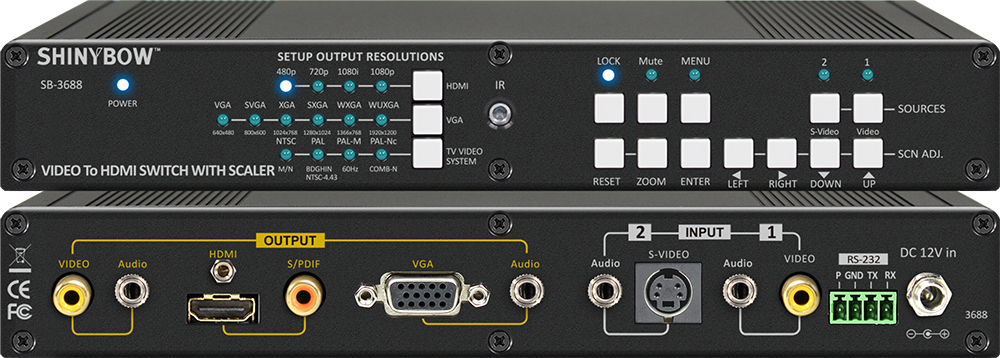

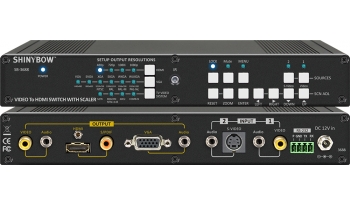

  • The SB-3688 is a high performance video graphics scaler supporting two (2) different video Input signal types including 1xComposite Video with Audio, 1x S-Video with Audio and one(1) output including 1x HDMI™ with S/PDIF Audio, 1x VGA with Audio and 1xComposite Video with Audio. ALL Output ports are active simultaneously. This scaler supports HDMI™ 1.3 formats and HDCP 1.2 Compliant. The SB-3690A Auto-detects the Input video standard in the form of NTSC,PAL and SECAM systems and converts to High Definition RGB digital HD signal. The scaler supports full HDTV resolution 480i/p, 576i/P, 720p or 1080i/p-60Hz formats, higher DVI resolution up to 1920x1200 . Zoom management can be selected between 5 modes. Input resolutions can be scaling up to 1080p and scaling down to 480p. Support menu for controlling brightness, contrast and saturation. Control is provided via front panel buttons with LED display, RS-232 or wireless IR remote control.
  • 01. Composite Video / S-Video To HDMI , VGA and Composite Video Scaler
    02. Inputs: 1x Composite Video with Audio, 1x S-Video with Audio
    03. Outputs: 1x HDMI with S/PDIF, 1xVGA with Audio, 1x Composite Video with Audio
    04. HDMI Video Scaler Support HDMI 1.3, HDCP 1.2 Compliant.
    05. Support VGA output resolution VGA 640x480, SVGA 800x600, XGA
           1024x768, WUXGA 1920x1200
    06. Support Multi-TV Video Standard System Inputs and Outputs:
           NTSC3.58, NTSC-J, PAL, PAL-N, PAL-N Com-n, PAL-M, PAL60
    07. Support menu for controlling brightness, contrast and saturation.
    08. Zoom management can be selected between 5 modes
    09. Provide IR remote control (38KHz).
    10. Various User Interface control:
           • Front Panel push button
           • IR wireless remote control
           • RS 232 interface control driver for 95/98/2000/xp
    11. Power supply DC12Volt, Universal Type switch 100~240VAC, 50/60Hz.
  • Type of Converter Composite Video / S-Video To HDMI , VGA  and Composite Video Scaler
    Video Input Signal 1x Composite Video, 1x S-Video
    Audio Inputs 1x Stereo Audio (Composite), 1x Stereo Audio (S-Video)
    Video Output Signal 1x Composite Video, 1x VGA and 1x HDMI
    Audio Outputs 2x Stereo Audio(PCM-2ch), 1x S/PDIF
    HDMI/HDCP Support HDMI 1.3 Receiver & Trasnmitter, compliant with HDCP 1.2
    Video Color Subcarrier Frequency NTSC-3.58 / NTSC-J 4.43 / PAL-4.433619 / PAL-M 3.575611 / PAL-N 3.582056 Mhz / PAL-60, 0.5 V-pp~2V-pp,75 Ohms
    VGA Resolutions VGA(640x480), SVGA(800x600), XGA(1024x768), Maximum WUXGA(1920x1200)
    PAL/NTSC line  Conversion Composite Video 525 / 625Lines
    PAL/NTSC Field Conversion Composite 50 / 60 Hz Fields
    Output Scaler HDMI up to 1080p-60 and PC up to WXGA 1920x1200
    Source Status Automatic scanning of input/output status
    HDMI Cable Distance Max. 15 meters (~49 feet), depending on cable quality
    Infrared Frequency 38KHz
    Chassis Material Metal
    Control Front Panel, IR, RS-232
    Dimension (WxDxH) 8.66" x 5.04" x  1.3" (220mm x 128mm x 33mm)
    Power Supply Input 100 ~ 240 VAC, 50/60 Hz Output DC 12V, 2A
    Safety Approvals CE, FCC
    Temperature 32°F - 100°F (0°C - 32°C)
    Weight 1 kg / 2.2 lb
