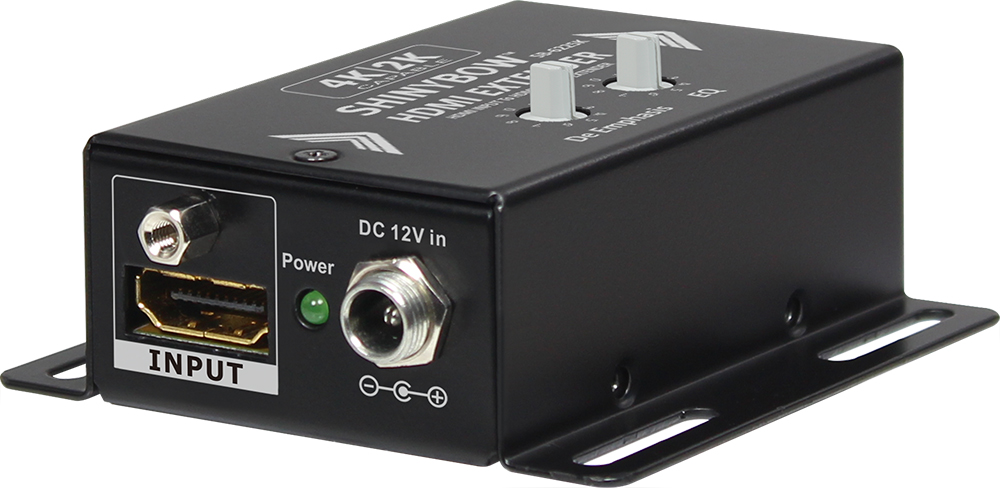

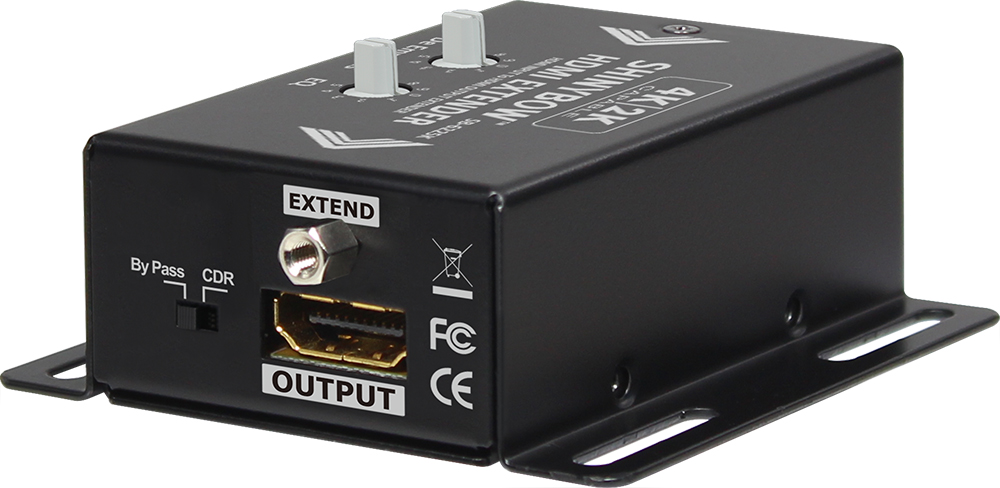

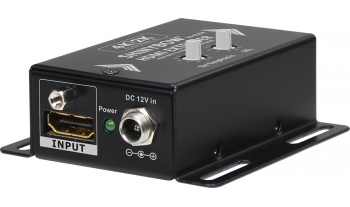

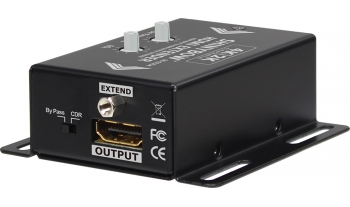

- The SB-6225K is a HDMI™ extender and will extend the HDMI™ signals up to 50m. SB-6225K repeaters can be daisy chained, to create much longer HDMI™ extensions up to 50m. The SB-6225K supports the HDMI™ 1.3, 1.4a 3D version ,1080p HD resolution up to 4K2K and multi-channels digital audio for the best signal quality. Support link speed up to 6.75Gpbs. Standard installation involves using HDMI™ cable -- up to 25m long which is connected from HDMI™ source (DVD player,PS3, set-topbox) to the HDMI™ input jack on the SB-6225K. The another HDMI™ cable runs from the SB-6225K output jack to the HDTV display -- up to 25m away.
-
1. HDMI signal Digital Video TMDS /Audio 50M Extender 2. HDMI digital Video/Audio and DVI format and HDCP compliant 3. Support link speeds of up to 6.75 Gbps 4. Support Digital RGB 36bits HDMI TMDS format deep color 5. Support HD High Definition resolution 408p, 720p 1080i/1080p and 4K2K 6. Support EQ and De Emphasis Management 7. Support High quality Digital Audio format with DTS-HD Master Audio, Dolby True-HD & Dolby 8. Long distance extend between Blu-Ray HDMI player and HDMI display 9. Easy to install without any adjustment 10. Surface mounting bracket included 11. Power DC 12V input with Low power consuming -
Type of Extender HDMI signal for distance 50M Extender Signal Support Compliant with HDMI 1.4 standards, HDCP Compliant Support HD resolution DTV resolutions : 480i, 576i, 480p, 576p, 1080i , 1080p and up to 4K2K
PC resolutions : VGA, SVGA, XGA, SXGA to UXGAAudio Support DTS-HD Master Audio, Dolby True-HD & Dolby Digital Plus Safety Approval CE, FCC Dimension (WxDxH) 2.65" x 2.76" x 1" (67.4mm x 70mm x 25mm) Weight 0.15 kg / 0.33 lb Power Supply DC 12V /0.42A Max, Use Universal Switch Type 50/60Hz, 100~240VAC
