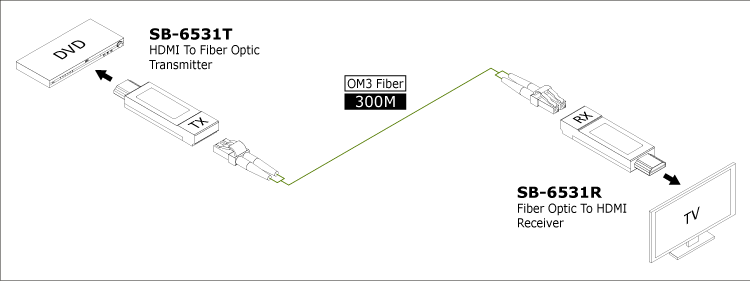

SB-6531T / SB-6531R
HDMI To Fiber Optic Extender
HDMI To Fiber Optic Extender

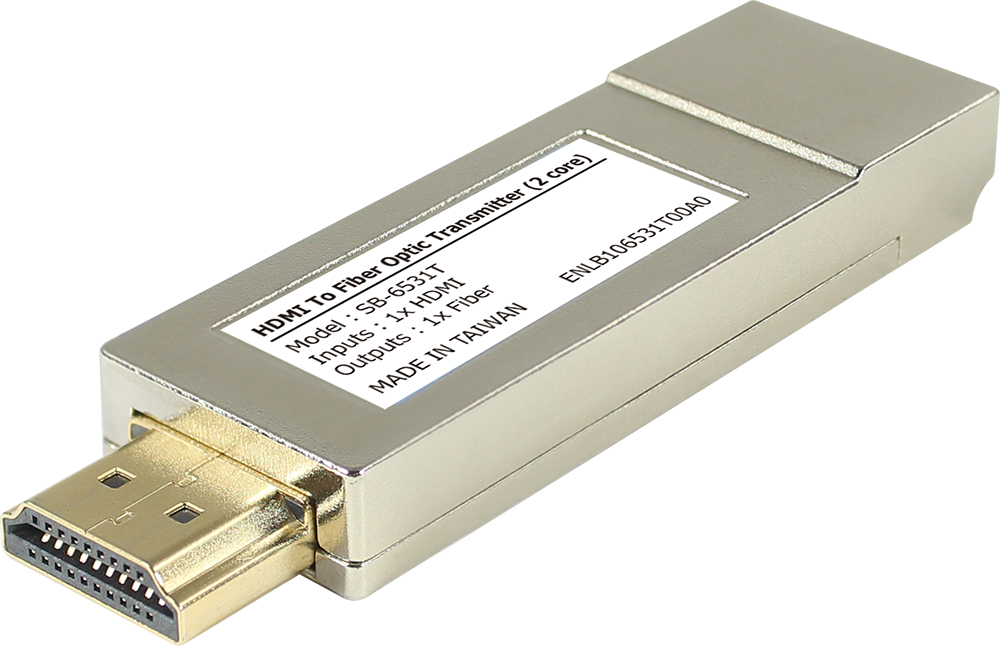

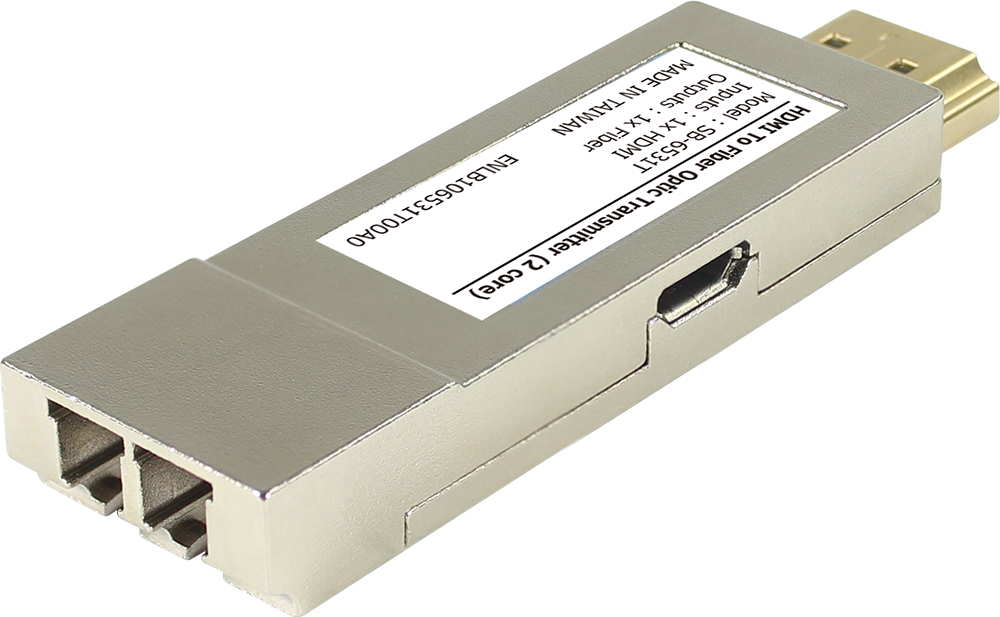

| SB-6531T |
| HDMI To Fiber Optic Transmitter |
| Input : 1x HDMI |
| Output : 1x Fiber Optic |

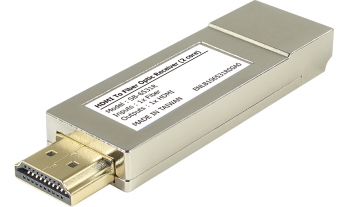

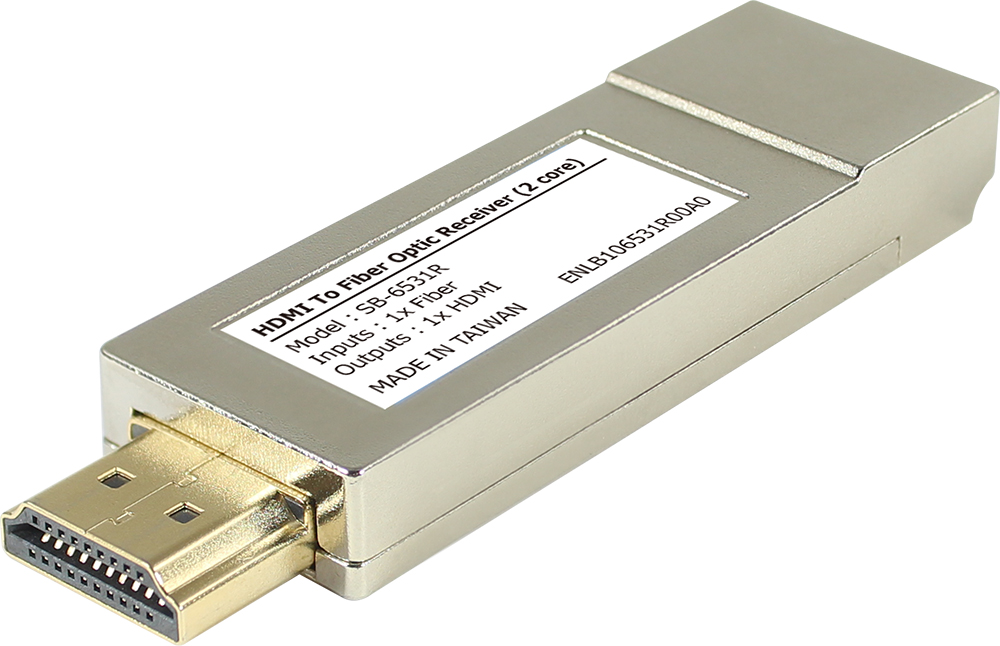

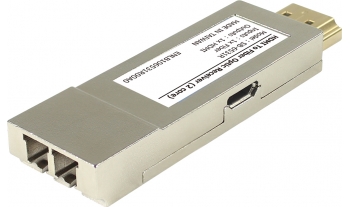

| SB-6531R |
| HDMI To Fiber Optic Receiver |
| Input : 1x Fiber Optic |
| Output : 1x HDMI |
- Introduction
- Features
- Specifications
-
-
1. HDMI over Optical Fiber Extender 2. Extend HDMI up to 1000ft (300M) 3. Support link speed up to 10.2Gpbs 4. Support video resolution up to 4K2K 5. Available single-strand multimode LC fiber optic cable 6. Support EDID, HDCP and HDCP over DLI, no more EDID learning 7. Proven optical module reliability: TELCORDIA GR-468 8. Signal re-clocking, no TMDS extension to minimize skew 9. Secure data without RFI/EMI emission or loss of video quality 10. Complies with class 1M laser eye safety in compliance with FDA/CDRH and IEC 60825-1 -
Type of Extender Fiber Transmitter for HDMI signal over Optical Fiber Cable Input Signals HDMI Signal Support HDMI 1.4a HDMI format Standard and HDCP Compliant Video Support 1920 x 1200 / 1080P @ 60Hz, up to 4K2K @ 30Hz Audio Support Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) Dynamic EDID Plug & Play, no need to learn Fiber Connector Double LC Receptacle Transfer distance Multi Mode, up to 1000 ft Operating Temperature 0°C to + 50°C Storage Temperature -20°C to + 85°C Humidity to 90% RH (non-condensing) Safety Approvals CE Dimension (WxDxH) 3.15" x 0.79" x 0.35" (80mm x 20mm x 9mm) Weight 0.1 kg / 0.22 lb Operation Voltage 5 DVC Power Supply Power Input +5VDC, 0.85A
(Universal Type 50/60Hz, 100~240 VAC)
