SB-3729

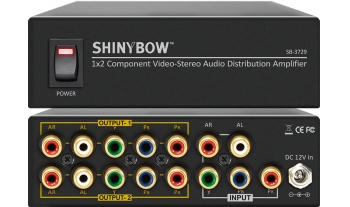

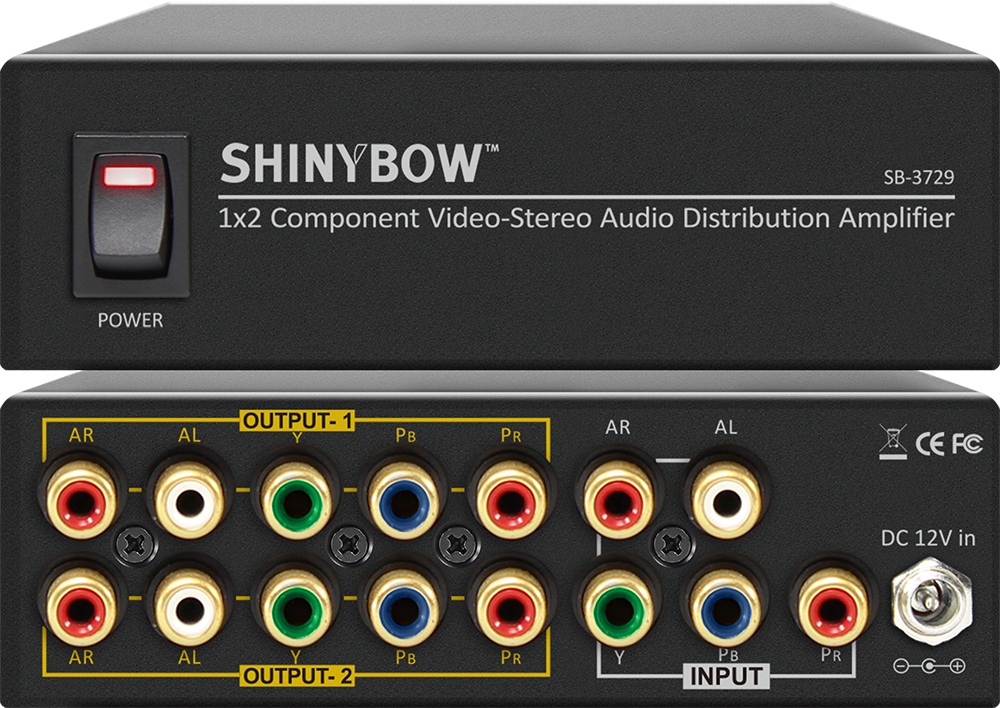

1x2 COMPONENT-AUDIO DISTRIBUTION AMPLIFIER
1x2 COMPONENT-AUDIO DISTRIBUTION AMPLIFIER
| Input : 1x Component(YPBPR), Stereo Audio(AR/AL) |
| Output : 2x Component(YPBPR), Stereo Audio(AR/AL) |
- Introduction
- Features
- Specifications
- SB-3729 is a high speed Video Bandwidth small signal 400MHz and large signal 450MHz one input to two outputs distribution amplifier product. It’s one of the most innovative Component Video(YPbPr) and Stereo Audio (AR/AL) Distribution Amplifier product on the market today. It has 1 individual input with 2 individual outputs. Because it is a distribution amplifier, the input may be distributed to any two outputs; it completely eliminates the need to constantly move around Component Video and Stereo Audio input and output cables. This Distribution Amplifier is ideally suited for full HDTV for the resolution of 480p, 720p. Control is provided power switch via front on/off switch.
-
1. Support 1 input to 2 outputs Component-Audio Distribution Amplifier 2. Support HDTV Resolution 480i, 480p, 576p, 720p 3. Video Bandwidth : 450MHz (-3dB), 200 mVp-p 4. Audio bandwidth : 60MHz 5. Audio Frequency Respond : 20Hz ~ 20KHz 6. Low all hostile crosstalk of -83dB @ 5MHz 7. Signals switch including: Component Video YPbPr, Stereo Audio (AR/AL) signals 8. Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays 9. Direct selection power switch via Front panel 10. Support Lower power consumed full load under 450 mA 11. Power supply offer a universal type 100~240 VAC switch -
Type of switcher 1 input to 2 outputs Component-Audio Distribution Amplifier Video Bandwidth 400MHz, (-3dB) 200 mV p-p, 450MHz, (-3dB) 2V p-p, R=450MHz,
G=450MHz, B=450MHz, Audio=60MHzAudio Bandwidth 60MHz, (-3dB)(Audio-Right=60MHz, Audio-Lift=60MHz) Audio Frequency Respond 20Hz ~20KHz All Hostile Crosstalk -84dB @ 5MHz, -54dB @ 50MHz Channel Crosstalk -56dB @ 100MHz Slew Rate 1000 V/us, G=+1,2 V Step Controls Power switch via Front panel switch LED readout Safety Approvals CE, FCC, VCCI Dimension (WxDxH) 4.33" x 3.14" x 1.57" (110mm x80mm x40mm) Weight 0.65 kg / 1.43 lb Power Voltage Input DC 12V @420mA
