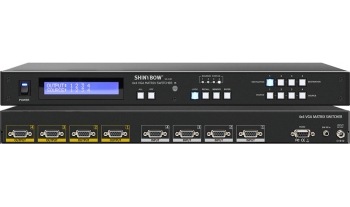

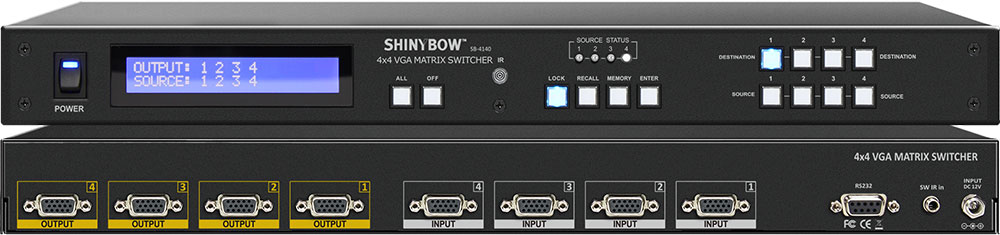

4x4 VGA MATRIX SWITCHER
SB-4140LCM
4x4 VGA MATRIX SWITCHER
Input : 4x VGA(RGBHV)
Output : 4x VGA(RGBHV)
  • Introduction
  • Features
  • Specifications
  • SB-4140LCM is a high speed Video Bandwidth 310MHz, Maximum 380MHz VGA (4) in To (4) out Matrix switch product. It’s one of the most innovative VGA (RGBHV) signals switching product. Support 19 inch Ear mount pair part number #1U-440L. It support (4) individual inputs with (4) individual outputs. Because it is a matrix routing switcher, any input may be routed to any output. It completely eliminates the need to constantly move around VGA input and output cables. This switcher is ideally suited for full HDTV Television for VGA (R,B,G,H,V) signals or HD Plasma display monitor resolution applications. Support world wide control key functions : ALL / OFF / RECALL / ENTER / MEMORY / EDID / LOCK, Control is provided Front panel push buttons, IR remote or RS-232. A RS-232 Windows GUI interface is provided for matrix routing control (Windows only).
  • 1. Support (4) inputs to (4) outputs VGA (RBGHV) Matrix Switcher
    2. Input/Output signals via analog VGA (RGBHV)
    3. Higher Video Bandwidth 380MHz (-3dB), 200 mVp-p each path signals.
    4. Supported selection buttons direct channel on front panel.
    5. Support PC Resolution VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200), WUXGA (1920x1200)
    6. Low all hostile crosstalk of -83dB @ 5MHz
    7. Excellent ESD rating : exceeds 4000 V
    8. Various User Interface controls:
    • Windows based GUI control via RS-232 port
    • Front Panel push button
    • IR wireless remote controller
    • Third party RS-232 controller (via simple ASCII)
    9. Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays
    10. Direct selection and confirm via front push buttons with LED readout
    11. Infrared : IR remote control (38KHz)
    12. Support world wide (6)x control function keys:
    Full function front panel controls:  ALL / OFF / LOCK / RECALL / MEMORY / ENTER
    13. Support RS-232 interface control AP driver for PC 95/98/2000/xp
    14. A Windows-based control software Driver packaged
    15. Support desktop with Ear mount and 19 inch 1U Rack mountable type panel
    16. Support Lower power consumed full load under 950 mA
    17. Power supply DC12Volt, Universal Type Switch 100~240VAC, 50/60Hz
  • Type of VGA switch 4 inputs to 4 outputs VGA Matrix Switcher
    Video Bandwidth 380MHz, (-3dB) 200 mV p-p, 310MHz, (-3dB) 2V p-p,
    R=325MHz, G=325MHz, B=325MHz, H=110MHz, V=110MHz
    Input   : VGA  4x Video (Composite Video) use VGA HD15P connectors
    Output : VGA 4x Video (Composite Video) use VGA HD15P connectors
    Source Status Input status LEDs indicates presence of a live signal
    Gain Flatness 90MHz, 0.1dB
    Differential Gain Error 0.01%, 0.1dB
    Differential Phase Error 0.02, 0.1dB (RL=150W)
    Fast settling time 15ns To 0.1%
    All Hostile Crosstalk -84dB @ 5MHz, -54dB @ 50MHz
    Channel Crosstalk -56dB @ 100MHz
    Slew Rate 1000 V/us, G=+1,2 V Step
    High OFF Isolation -100dB @ 10MHz
    Output Current 100 mA
    Low power CMOS 550 uA Quiescent Current
    Infrared Frequency 38KHz
    IR External Distance ~984 feet / 300 meters maximum
    Switch Controls 1x  Select & Function buttons on front panel
    (Data status via LCM panel show out)
    1x  IR Remote Controller (switch control)
    1x  RS-232 series interface (switch control)
    (14) Function key Control 1.ALL, 2.OFF, 3.RECALL, 4.ENTER, 5.MEMORY, 6.LOCK,
    7.Destination button 1 thru 4, 8.Source button 1 thru 4
    Safety Approvals CE, FCC, VCCI, Erp, WEEE
    Dimension (WxDxH) 17.32" x 7.80" x 1.73" (440mm x 200mm x 44mm)
    Rack Mount 1RU High 19" Rack Mount #1U-440L (with rack mount)
    Weight 2.45 kg / 5.4 lb
    Power Voltage Input DC 12V @ 1.25A, Use Universal Type 50/60Hz,100~240 VAC
