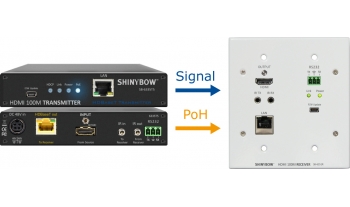

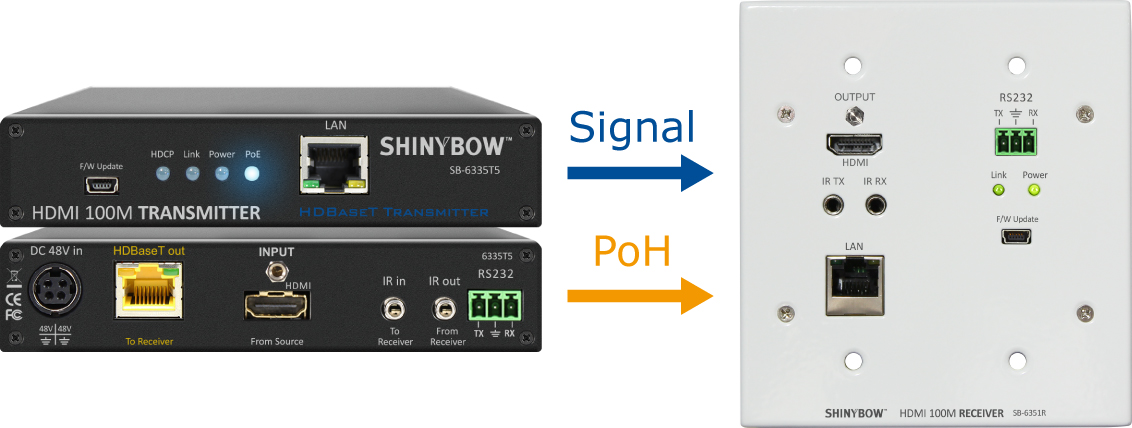

HDMI HDBaseT Extender with (PoH)
SB-6335T5 / SB-6351R
HDMI HDBaseT Extender with (PoH)
HDMI HDBaseT Transmitter (PoH)
Input : 1x HDMI
Output : 1x HDBaseT (PoH)
Controls : IR (in/out), RS-232, LAN
HDMI HDBaseT Receiver (PoH)
Input : 1x HDBaseT (PoH)
Output : 1x HDMI
Controls : IR (in/out), RS-232, LAN
PoH : Power 48VDC Supports from Transmitter
  • Introduction
  • Features
  • Specifications
  • 1. HDBaseT TX/RX with 3D, 4Kx2K over a single UTP/STP cable up to 330ft (100M)
    2. Support HDMI 1080p@60 video V1.4a 3D and Ultra HD 4K2K video, CEC / HDCP compliant
    3. Support link speeds of up to Video, TMDS format Max. 8.1 Gbit/s, Signal 340MHz
    4. Deep Color, Full HD 1080p@60Hz@24/36/48bit/pixels
    5. Support 1080p TV’s at 24/30/60/100/120 Hz and above as well as Blu-rays at 24 FPS
    6. Support Digital Audio 7.1 LPCM 192KHz, 24bits, Full HD Dolby TrueHD and DTS-HD Master Audio uncompressed HD audio formats
    7. Support PoH power over HDBaseT
    (Support Power 48VDC From Transmitter To Receiver)
    8. Transfer Bi-directional Infrared control signal together with the HDMI signal
    9. RS-232 port for firmware update or RS-232 control signal transmission
    10. Support HDMI CEC between your connected Source and display gear
    11. With LED indicators to show the POWER / PoH / HDCP / LINK status

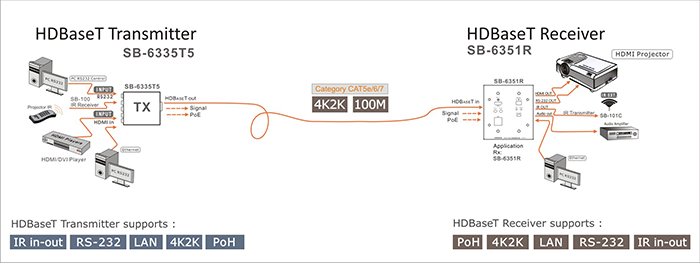

    12. HDBaseT transfer HDMI, PoE, LAN, RS-232 and Bi-Directional IR over single Category cable
    13. Support Super Audio CD (DSD), CEC commands protocol table
    14. Mounting Ears and wall mount pack supplied
    15. Power supply using universal power switch 48VDC, 50/60Hz,100~240VAC
  • Type of Extender HDBaseT RX & TX use HDMI signal over category UTP/STP Cable
    Input Signals HDMI with Digital Video(TMDS)/Audio 0.5~1.0vPP, DDC 5Vpp
    HDBaseT Signal Supports HDMI 1.4a HDMI format Standard, DVI and HDCP Compliant
    Video Support HDMI and DVI TMDS format for 1920x1200 resolution up to
    8.1 Gbps (340MHz), Digital RGB 48bits/px, deep color, 3D
    Category Cable Support CAT5e, CAT6, CAT6a, CAT7 UTP/STP cable
    Support HDMI resolutions 480p, 720p 1080i/1080p and Ultra HD 4K2K
    Scan Rate Accepted Support HDMI full HD Resolution ; Frequency 24Hz to 120Hz
    Controls 1x IR in, 1x IR out, 1x RS-232 I/O and 1x LAN series interface
    PoH Support PoH power over HDBaseT
    (Support Power 48VDC From Transmitter To Receiver). (SB-6351R)
    Transfer distance Up to 330ft (100 meters)
    HDMI I/O connectors HDMI Type A -  SMD 19pin Female Type
    HDBaseT I/O connectors HDBaseT RJ-45, 8p8c Female socket
    Safety Approvals CE, FCC, VCCI, REACH
    Dimension (WxDxH) 5.31" x 5.11" x 1" (135mm x 130mm x 26mm)
    Weight 0.4775 kg / 1.05 lb
    Power consumption Max. 1250mA
    (Full load 1080p-60Hz signal with use DC12V input)
    Power Supply Power Input +48VDC, 5A
    (Universal Type 50/60Hz, 100~240 VAC)
