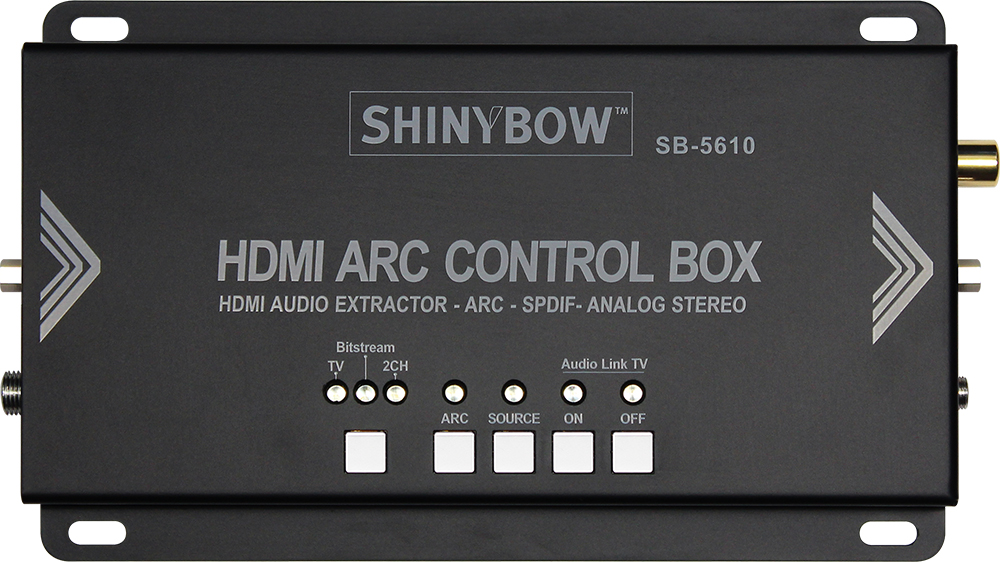

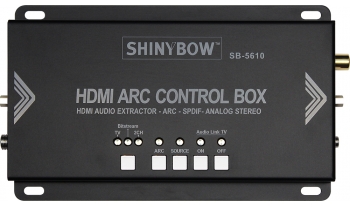

HDMI ARC CONTROL BOX
SB-5610
HDMI ARC CONTROL BOX

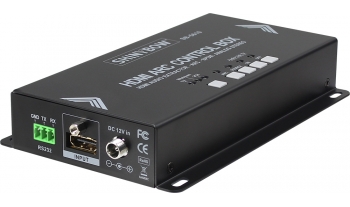

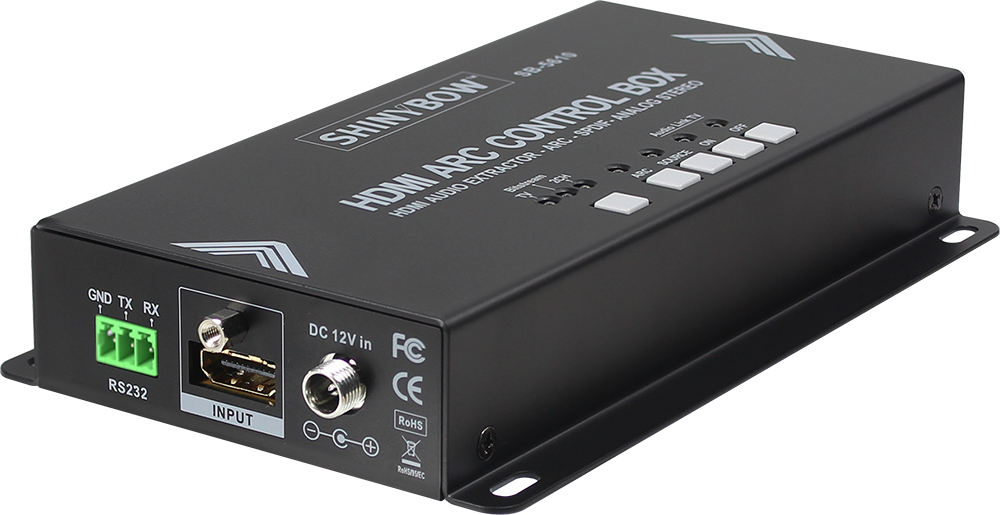

Input : 1x HDMI

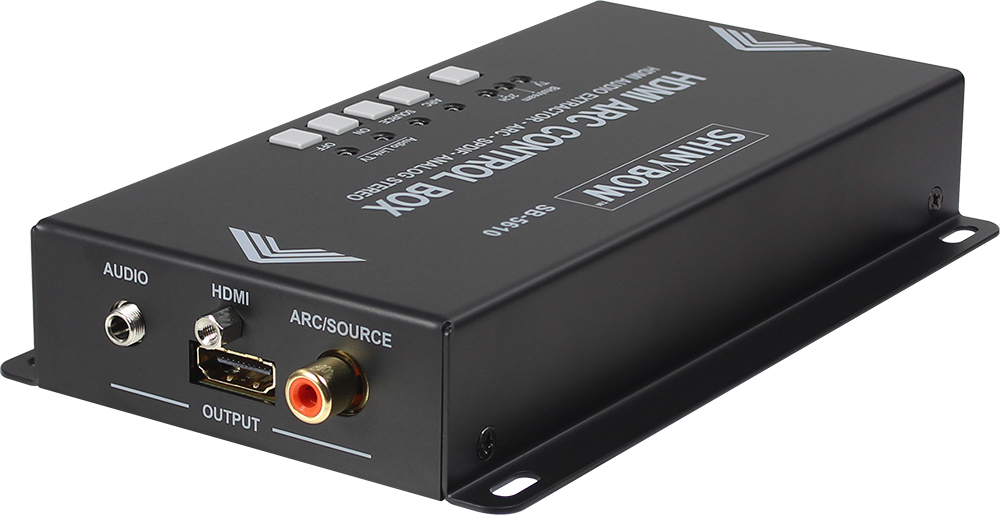

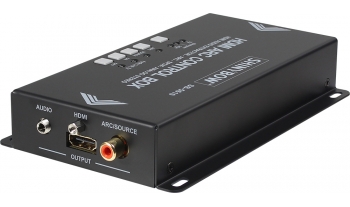

Output : 1x HDMI, 1x S/PDIF, 1x Stereo Audio
  • Introduction
  • Features
  • Specifications

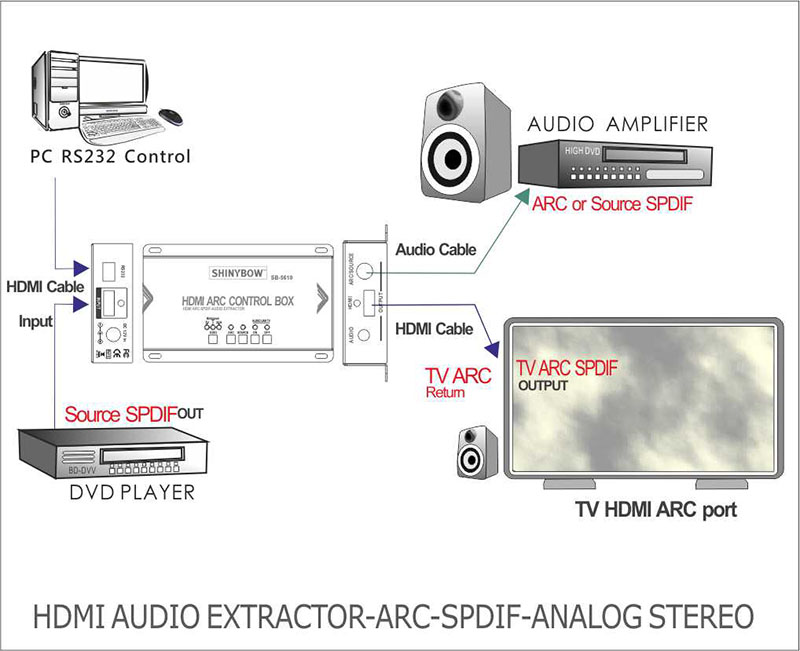

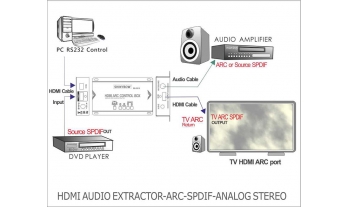

  • SB-5610 is a high quality HDMI™ ARC Control Box with HDMI™ Audio Extractor. Audio are ARC, DVD Source, S/PDIF and Analog stereo. This control Box can link audio (ARC or Source S/PFID) to TV or Audio Amplifier and turn ON/OFF the TV or Audio Amplifier speaker. The Audio Extractor support HDMI™ Repeater and Equalizer between HDMI™ player and display. SB-5610 supports HDMI™ 1.3, HDCP 2.0 and DVI 1.0 compliant, HDMI™ 1.4a, 3D formats. Audio support PCM 2-channel IIS/DSD, S/PDIF and HDMI™ outputs, Video support 36 bits Deep Color up to 1080p-60Hz (225 MHZ). This device allows you to extract analogue audio LPCM2 and digital audio S/PDIF from the HDMI™ signal while still sending the original audio video signal to your HD devices. When using a display without speakers you can still extract the analogue audio to external speakers or digital audio to an Amplifier.
  • 1. HDMI ARC Control Box with Source S/PDIF and Analogue Audio Extractor
    2. HDMI 1.3, HDMI 1.4a 3D format, DVI 1.0 and HDCP compliant
    3. Support HDMI in/out Repeater with Equalizer
    4. Support HDMI 3D Video Format in HDMI 1.4
    5. Support SD/HD Digital Audio 2-Channel IIS/DSD and S/PDIF Audio
    6. Support wide Frequency Range: 25MHz~225MHz TMDS colck
    7. Support RGB 12bits HDMI Deep Color up to 1080p(225MHz TMDS clock)
    8. Support HD High Definition resolutions HDMI 408p, 720p 1080i/1080p
    9. Support DVI resolutions up to UXGA (1920x1200)
    10. Digital Audio S/PDIF format with DTS 5.1, Dolby 5.1 & PCM2
    11. Analog audio support : LPCM2
    12. Support EDID : TV-passing EDID to source, PCM-2CH and Bitstream
    13. Turn Audio of TV or Audio Amplifier Speakers ON or OFF
    14. Support HDMI cable distance up to 50 feet (15M)
    15. Wall mountable using the build-in tabs
    16. Universal World Wide 100VAC~240VAC 50/60Hz power supply
  • Type of Extractor DMI Extractor ARC-Source S/PDIF-Analogue Audio
    HDMI Compliant HDMI 1.3, HDMI 1.4a 3D format, DVI 1.0
    EDID Support TV-passing EDID to source,PCM-2ch and Bitstream
    Video Support 1080p HDMI format and DVI 1920x1200 resolution Digital RGB 12bits format deep color TMDS clock
    Audio Support PCM-2CH
    S/PDIF port DTS 5.1, Dolby 5.1, PCM-2CH
    HDMI port PCM-2CH, PCM 7.1, DTS 5.1, Dolby 5.1, Dolby Digital 7.1, DTS HD7.1, MAP(MLP) 7.1, one-Bit Audio 2CH
    3D Support 3D Video format for HDMI 1.4a (225MHz)
    Frequency Range HDMI 25MHz ~ 225MHz TMDS clock
    ARC Control Audio Return Channel via TV HDMI ARC port
    Audio Extractor ON or OFF TV or Audio Amplifier
    Cable distance Total of 15M (depend on HDMI cable quality)
    Safety Approval CE, FCC
    Dimension (WxDxH) 6.22" x 3.86" x 1.08" (158mm x 98mm x 27.5mm)
    Weight 0.45 kgs / 1 lb
    Power Supply DC 12V /0.42A Max
    Use Universal Switch Type 50/60Hz, 100~240VAC
