4Way Component Video•Digital•Audio Transmitter
SB-6330
4Way Component Video•Digital•Audio Transmitter

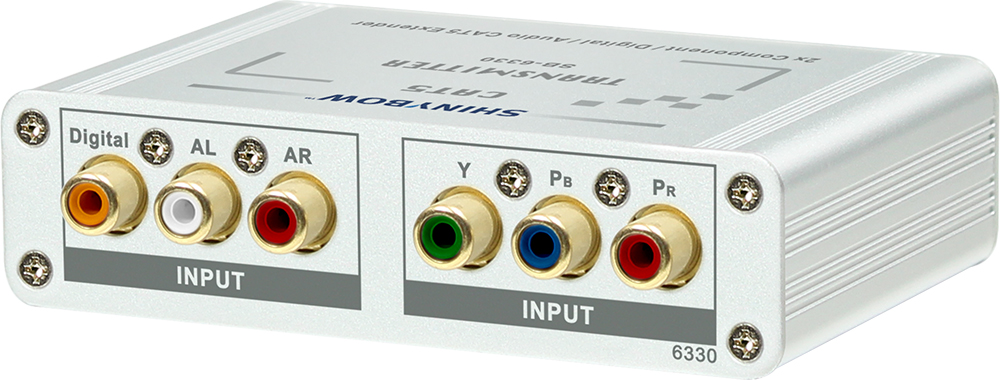

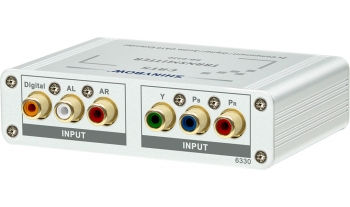

Input : 1x Component Video / Digital Audio and
Stereo Audio (AR/AL)

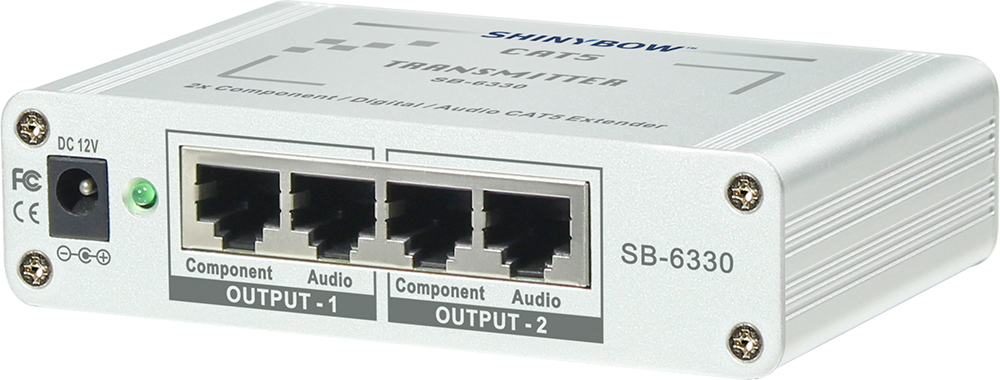

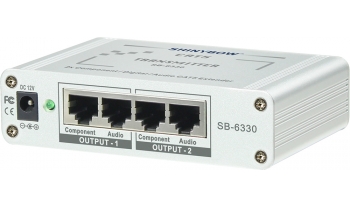

Output : 4x CAT5
  • Introduction
  • Features
  • Specifications
  • SB-6330 COMPONENT   DIGITAL • VIDEO • AUDIO CAT5 EXTENDERS
  • 1. Support Component Video (YPBPR) / Digital-Composite Video / Audio Over CAT5

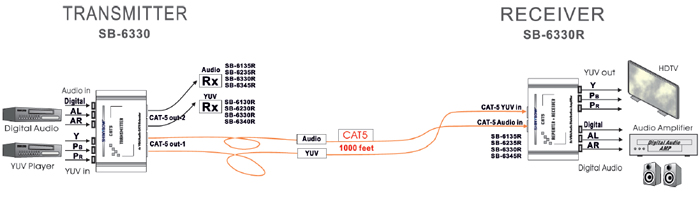

    2. Transmitter(Tx)/CAT5 Receiver(Rx)
    3. Provided by the Category 5 cable via RJ-45 connector
    4. SB-6330 : Input : 1x Component Video / Digital Audio and Stereo Audio, Output : 4x CAT5
    5. SB-6330R : Input : 1x CAT5 + 1 Loop Output Port, Output : 1x Component Video / Digital Audio and Stereo Audio
    6. Support Full HD resolution: 480i / 480p / 720p / 1080i and 1080p
    7. RGB, TINT and BRIGHTNESS adjustment
    8. Support long distance extension up to 100M (330ft)
    9. Wall mounted Ear Rack included
  • Type of CAT5 2x WAY CAT5 Transmitter(Tx)/Receiver(Rx)/Repeater(Rx)
    Type of Signals Component Video (YPBPR), Composite Video or Digital Audio / Stereo Audio(AR/AL) Via 6x RCA connectors
    CAT5 Connection Provided by the Category 5 cable via RJ-45 connectors
    CAT5 Repeater(Rxx) for Loop output to another CAT5 receiver
    Video Bandwidth 225MHz(-3dB), Large Signal Bandwidth: 450MHz(-3dB)
    Output Balance Error -60dB @ 50MHz
    High Isolation Between Amplifier 80dB @ 10MHz
    Color Proofread TINT and BRIGHTNESS adjustment
    Audio Impedance 10 Ohms
    Audio Frequency Response 20Hz to 20KHz, +/-1dB
    HD Resolutions 480i / 480p / 720p / 1080i and 1080p
    CAT5 Extend Distance 300M (1000FT) Maximum
    Enclosure ear-wall mounting attached
    Safety Approvals CE, FCC, VCCI
    Dimension (WxDxH) 4.49" x 2.87" x 1.14" (113mm x 73mm x 29mm)
    Weight 0.2 kg / 0.44 lb
    Power Supply DC12V / 1A
    Use Universal Switch Type 50/60Hz, 100~240VAC
