SB-3770
1x8 COMPONENT•DIGITAL•AUDIO DISTRIBUTION AMPLIFIER
1x8 COMPONENT•DIGITAL•AUDIO DISTRIBUTION AMPLIFIER
| Input : 1x Component Video(YPBPR), Digital Audio, Stereo Audio |
| Output : 7x Component Video(YPBPR), Digital Audio, Stereo Audio (Boost Signal ports) and 1x Loop Output Port |
- Introduction
- Features
- Specifications
-

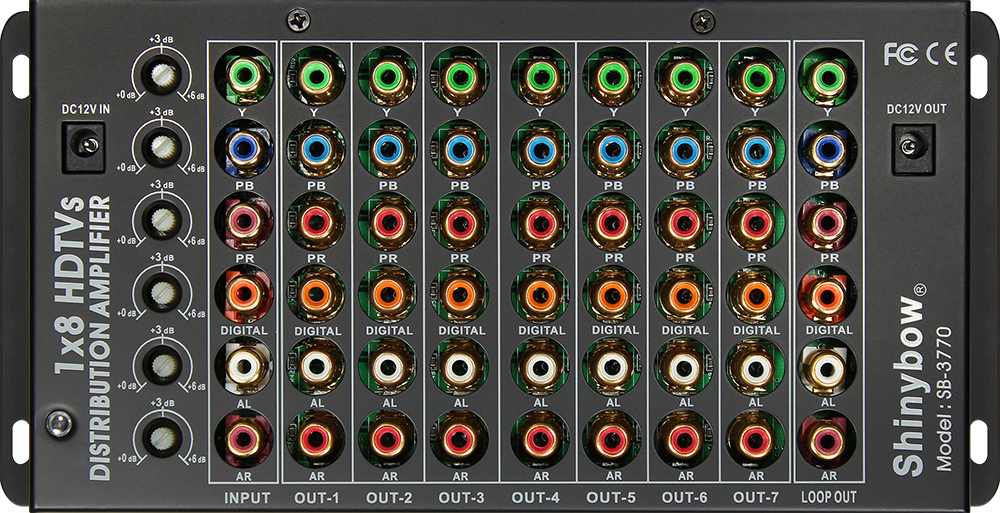

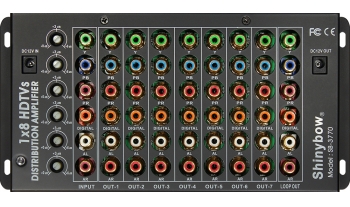

SB-3770 is a high speed Video Bandwidth small signal 700MHz, large signal 380MHz Distribution Amplifier product. It’s one of the most innovative Component Video(YPbPr), Digital Audio(PCM) and Stereo Audio(AR/AL) with Loop output function Distribution Amplifier product on the market today. Support wall Rack mount type. It has 1 individual input with 7 individual outputs. Because it is a Component Video/Digital and Stereo Audio Amplifier, the input may be distribution to any output ; it completely eliminates the need to constantly move around Component Video, Digital Audio and Stereo Audio input and output cables. This Distribution Amplifier is ideally suited for TV for resolution 480p, 720p.
-

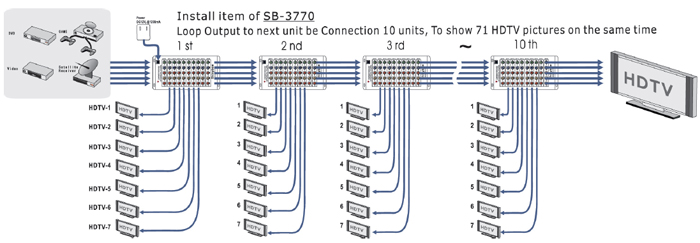

1. Support 1x input to 7x outputs with 1x Loop Output Distribution Amplifier 2. Signals amplifier including : Component Video (YPbPr), Digital Audio (S/PDIF), Stereo Audio (AR/AL) signals 3. Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays. HDTV Resolution 480i, 480p, 576p, 720p 4. Video Bandwidth : Small signal 700MHz, (-3dB), Large signal 380MHz 5. Digital Audio bandwidth : 110MHz. compatible Composite Video in/out 6. Audio bandwidth : 60MHz. (-3dB) 7. Audio Frequency Respond : 20Hz ~ 20KHz 8. Boost signal 0~+6dB via upper case 6x VR range volume 9. Support one Loop Output port, Linkage connection the others 10 amplifier units 10. Enclosure type : Support wall Rack mountable 1 inch high 11. Support Lower power consumed full load under 770 mA 12. Power supply offer a universal type 100~240 VAC switch -
Type of amplifier 1 input to 7 outputs with 1x Loop Output Distribution Amplifier Type of Signals Component (YPbPr), Digital (S/PDIF), Stereo Audio signals Video Bandwidth Small signal 700MHz, (-3dB), Large signal 380MHz, R=380MHz,
G=380MHz, B=380MHz, Digital=110MHz, Audio=60MHzAudio Bandwidth 60MHz, (-3dB) (Audio-Right=60MHz, Audio-Lift=60MHz) Audio Frequency Respond 20Hz ~20KHz All Hostile Crosstalk -84dB @ 5MHz, -54dB @ 50MHz Channel Crosstalk -56dB @ 100MHz Boost Volume 0~+6dB, Amplifier 7 output ports Loop Output Support one extend port to the others 10 amplifier units Safety Approvals CE, FCC, VCCI Dimension (WxDxH) 9.06" x 4.49" x 1.06" (230mm x 114mm x 27mm) Weight 0.7 kg / 1.54 lb Power Voltage Input DC 12V @ 2A
