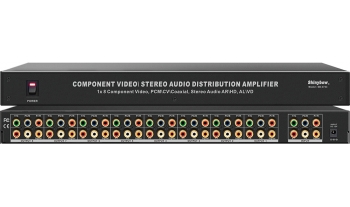

SB-3733
1x8 COMPONENT-DIGITAL-AUDIO(1000MB) DISTRIBUTION AMPLIFIER
1x8 COMPONENT-DIGITAL-AUDIO(1000MB) DISTRIBUTION AMPLIFIER
| Input : 1x Component Video (YPBPR), Digital, Stereo Audio(AR/AL) |
| Output : 8x Component Video (YPBPR), Digital, Stereo Audio(AR/AL) |
- Introduction
- Features
- Specifications
- SB-3733 is a high speed Video Bandwidth small signal 700MHz large signal 1000MHz Distribution Amplifier product. It’s one of the most innovative Component Video (YPbPr), Digital Audio(PCM) and Stereo Audio(AR/AL) with 8x outputs function distribution amplifier product on the market today. Support 19 inch Ear mount pair part number #1U-440L. It has 1 individual input with 8 individual outputs. Because it is a Component Video/Digital and Stereo Audio amplifier, 1 input can be distribution to any 8 outputs. It completely eliminates the need to constantly move around Component Video, Digital Audio and Stereo Audio input and output cables. This distribution amplifier is ideally suited for TV for resolution 480p, 720p. Control is provided power switch via front pushbuttons with LED readout.
-
1. Support 1 input to 8 outputs Component-Digital-Audio Distribution Amplifier 2. Support HDTV Resolution 480i, 480p, 576p, 720p 3. Video Bandwidth : Small signal 1000MHz, (-3dB), Large signal 440MHz 4. Digital Audio bandwidth : 110MHz. compatible Composite Video in/out 5. Audio Frequency Respond : 20Hz ~ 20KHz 6. Low all hostile crosstalk of -83dB @ 5MHz 7. Signals amplifier including : Component Video YPbPr, Digital Audio(S/PDIF) Stereo Audio (AR/AL) signals 8. Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays 9. Direct selection power switch via Front pushbuttons with LED readout 10. Enclosure type : Support 19 inch Ear & 1RU Rack mountable panel 11. Support Lower power consumed full load under 800 mA 12. Power supply offer a universal type 100~240 VAC switch -
Type of amplifier 1x input to 8x outputs Component-Digital-Audio Distribution Amplifier Video Bandwidth Small signal 1000MHz, (-3dB), Large signal 700MHz, R=700MHz, G=700MHz,
B=700MHz, Digital=110MHz, Audio=60MHzAudio Bandwidth 60MHz, (-3dB)(Audio-Right=60MHz, Audio-Lift=60MHz) Audio Frequency Respond 20Hz ~20KHz All Hostile Crosstalk -84dB @ 5MHz, -54dB @ 50MHz Channel Crosstalk Channel Crosstalk : -56dB @ 100MHz Slew Rate 1000 V/us, G=+1,2 V Step Controls Switch power via Front panel selection buttons with LED readout Safety Approvals CE, FCC, VCCI Dimension (WxDxH) 17.32" x 7.87" x 1.73" (440mm x 200mm x 44mm) Weight 2.45 kg / 5.4 lb Power Voltage Input DC 12V @ 2A
