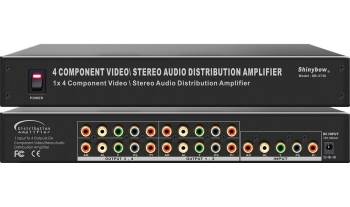

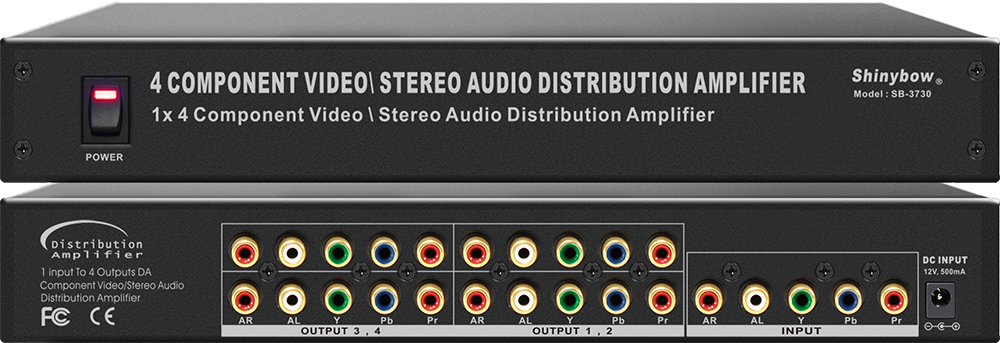

SB-3730
1x4 COMPONENT-AUDIO DISTRIBUTION AMPLIFIER
1x4 COMPONENT-AUDIO DISTRIBUTION AMPLIFIER
| Input : 1x Component(YPBPR), Stereo Audio(AR/AL) |
| Output : 4x Component(YPBPR), Stereo Audio(AR/AL) |
- Introduction
- Features
- Specifications
- SB-3730 is a high speed Video Bandwidth small signal 300MHz large signal 320MHz Distribution Amplifier product. It’s one of the most innovative Component Video(YPbPr),and Stereo Audio(AR/AL) Distribution Amplifier product on the market today. Support 19 inch Ear mount pair part number #1U-300L. It has 1 individual input with 4 individual outputs. Because it is a Component Video and Audio amplifier, the input may be distribution to any output; it completely eliminates the need to constantly move around Component Video and Stereo Audio input and output cables. This Distribution Amplifier is ideally suited for TV for resolution 480p, 720p. Control is provided power switch via front pushbuttons with LED readout remote controller.
-
1. Support 1 input to 4 outputs Component-Audio Distribution Amplifier 2. Support HDTV Resolution 480i, 480p, 576p, 720p 3. Video Bandwidth : 300MHz (-3dB), 200 mVp-p 4. Audio bandwidth : 60MHz 5. Audio Frequency Respond : 20Hz ~ 20KHz 6. Low all hostile crosstalk of -83dB @ 5MHz 7. Signals switch including: Component Video YPbPr, Stereo Audio (AR/AL) signals 8. Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays 9. Direct selection power switch via front pushbuttons with LED readout 10. Enclosure type : Support 19 inch Ear & 1RU Rack mountable panel 11. Support Lower power consumed full load under 450 mA 12. Power supply offer a universal type 100~240 VAC switch -
Type of switcher 1 input to 4 outputs Component-Audio Distribution Amplifier Video Bandwidth 300MHz, (-3dB) 200 mV p-p, 380MHz, (-3dB) 2V p-p,
R=300MHz, G=300MHz, B=300MHz, Audio=60MHzAudio Bandwidth 60MHz, (-3dB)(Audio-Right=60MHz, Audio-Lift=60MHz) Audio Frequency Respond 20Hz ~20KHz All Hostile Crosstalk -84dB @ 5MHz, -54dB @ 50MHz Channel Crosstalk -56dB @ 100MHz Slew Rate 1000 V/us, G=+1,2 V Step Controls Power switch via front panel selection buttons with LED readout Safety Approvals CE, FCC, VCCI Dimension (WxDxH) 11.97" x 6.06" x 1.73" (304mm x 154mm x 44mm) Weight 1.4 kg / 3.08 lb Power Voltage Input DC 12V @ 1A
