SB-5460

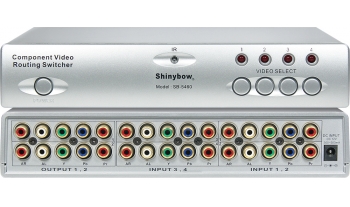

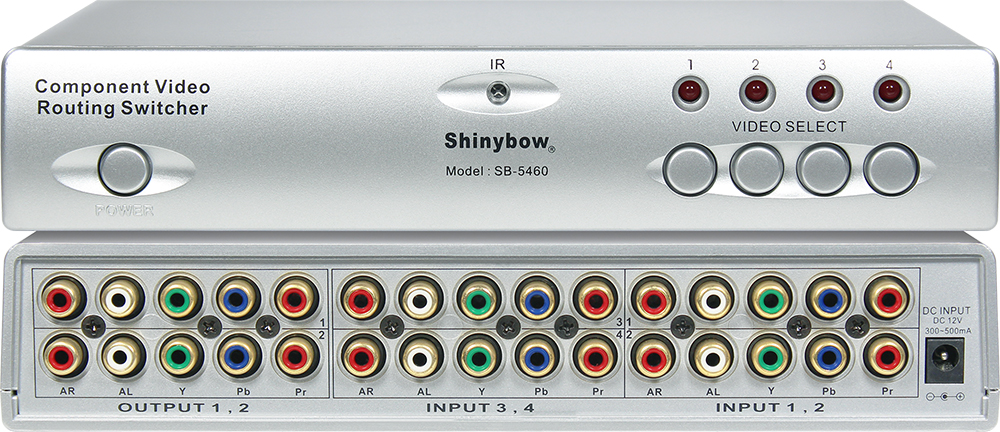

4x2 COMPONENT-AUDIO ROUTING SWITCHER
4x2 COMPONENT-AUDIO ROUTING SWITCHER
| Input : 4x COMPONENT VIDEO (YPBPR), 4x Stereo Audio (AR/AL) |
| Output : 2x COMPONENT VIDEO (YPBPR), 2x Stereo Audio (AR/AL) |
- Introduction
- Features
- Specifications
- SB-5460 is a high speed Video Bandwidth 250MHz, Maximum 300MHz 4 input to 2 output Router Switcher product. It’s one of the most innovative Component Video(YPbPr), and Stereo Audio(AR/AL) switching products on the market today. Support 19 inch Ear mount pair part number #1U-300L. It has 4 individual inputs with 2 individual outputs. Because it is a Router Switcher, any input may be routed to output. It completely eliminates the need to constantly move around Component Video and Stereo Audio input and output cables. This Router Switcher is ideally suited for full HDTV for the resolution of 480p, 720p. Control is provided via front pushbuttons with LED readout or IR remote controller.
-
1. Support 4 inputs to 2 outputs Component-Audio Router Switcher 2. Support HDTV Resolution 480i, 480p, 576p, 720p 3. Video Bandwidth : 250MHz (-3dB), 200 mVp-p 4. Audio Bandwidth : 60MHz. compatible Composite Video 5. Audio Frequency Respond : 20Hz ~ 20KHz 6. Low all hostile crosstalk of -83dB @ 5MHz 7. Infrared : IR remote control via Frequency (38KHz) 8. Signals switch including: Component Video YPbPr & Stereo Audio (AR/AL) 9. Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays 10. Direct selection channel via front pushbuttons with LED readout 11. Support Lower power consumed full load under 250 mA 12. Power supply offer a universal type 100~240 VAC switch -
Type of switcher 4 inputs to 2 outputs Component-Audio Router Switcher Video Bandwidth 250MHz, (-3dB) 200 mV p-p, 280MHz, (-3dB) 2V p-p, R=250MHz,
G=250MHz, B=250MHz, Audio=60MHzAudio Bandwidth 60MHz, (-3dB)
(Audio-Right=60MHz, Audio-Lift=60MHz)Audio Frequency Respond 20Hz ~20KHz All Hostile Crosstalk -84dB @ 5MHz, -54dB @ 50MHz Channel Crosstalk -56dB @ 100MHz Slew Rate 1000 V/us, G=+1,2 V Step Controls IR Remote Controller(38KHz),
Front panel selection buttons with LED readoutSafety Approvals CE, FCC, VCCI Dimension (WxDxH) 9.45" x 5.71" x 1.77" (240mm x 145mm x 45mm) Weight 0.5 kg / 1.10 lb Power Voltage Input DC 12V @1A
