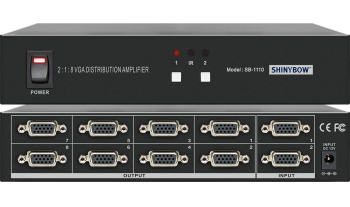

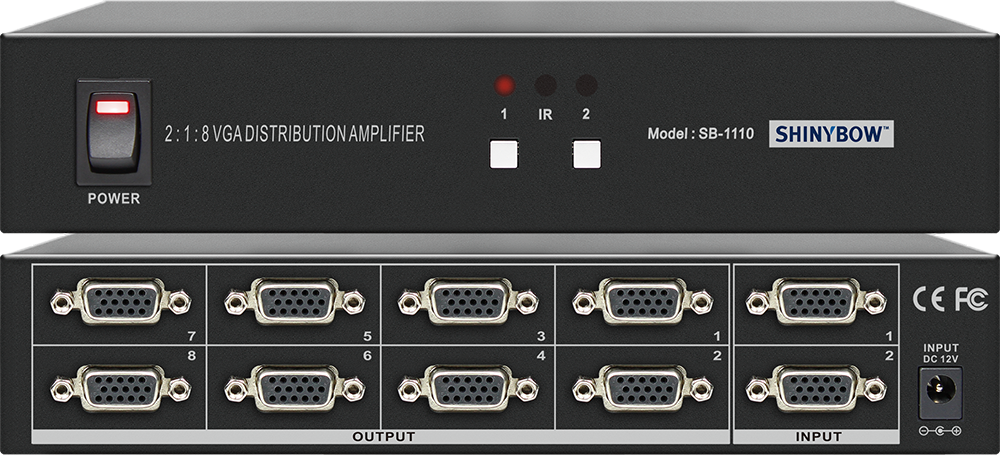

- SB-1110 is a high speed Video Bandwidth 310MHz, Maximum 380MHz VGA Routing switcher distribution amplifier product. It’s one of the most innovative VGA switching product. There’s 2 individual inputs with 8 individual outputs, any input may be routed to any outputs. It completely eliminates the need to constantly move around VGA input and output cables. This switcher distribution amplifier is suited to full HD LCD Television or Plasma display monitor applications. Control is provided via direct selection front push buttons with LED readout.
-
1. Support 1 input to 16 outputs of Signal VGA (RGBHV) Distribution Amplifier 2. Low Distortion over Wide Bandwidth Large Signal Bandwidth 440MHz,
G=+2, Small signal Bandwidth 1GHz (-3dB) G=+13. High VGA resolutions for VGA, SVGA, XGA, UXGA, WUXGA (1920x1200) 4. High Definition HDTV resolutions for 480p, 720p, 1080i and 1080p (1920x1080) 5. Support Lower power consumed full load under 500mA 6. Automatically Scan rates accepted : 50Hz or 60Hz 7. Goods Video Specifications Gain Flatness 0.1dB to 75MHz 8. High Output Drive 175 mA Output Load Drive 9. Terminal via HDdB15P Female connector 10. Enclosure Support 19" Ear rack mount pair and 1RU 19" rack mountable 11. Power Supply : Universal switching 100~240VAC, 50/60Hz, DC12V, 1.25A -
Type of Amplifier 1 input to 16 outputs VGA Distribution Amplifier Type of Signals VGA (RGBHV) via HD-15p via HD-15P female connectors Large Signal Bandwidth 440MHz, G=+2 Small signal Bandwidth 1GHz (-3dB) G=+1 Settling Time 10 ns to 0.1%, 2 V Step, G=+2 Scan rates accepted 50Hz or 60Hz Resolutions VGA, SVGA, XGA, UXGA,WUXGA 1920x1200 Safety approvals CE, FCC, Erp, WEEE Enclosure type Support 19" ear rackmount pair for 1RU mountable Dimension (WxDxH) 17.32" x 7.80" x 1.73" (440mm x 200mm x 44mm) Weight 2.45 kg / 5.4 lb Power Supply Universal switching 100~240VAC, 50/60Hz, DC12V,1.25A
