SB-2106

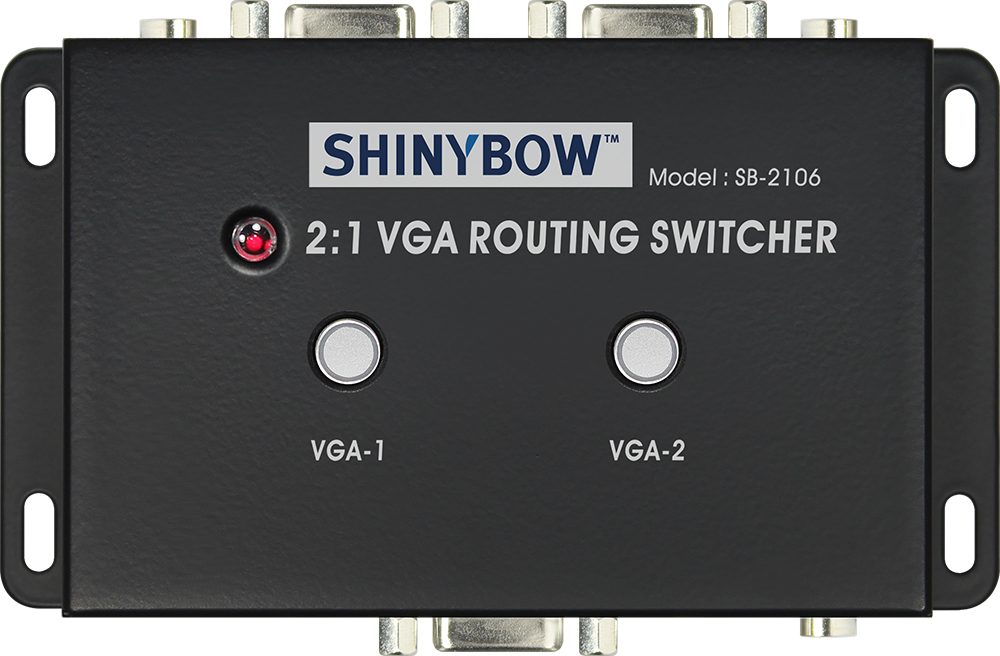

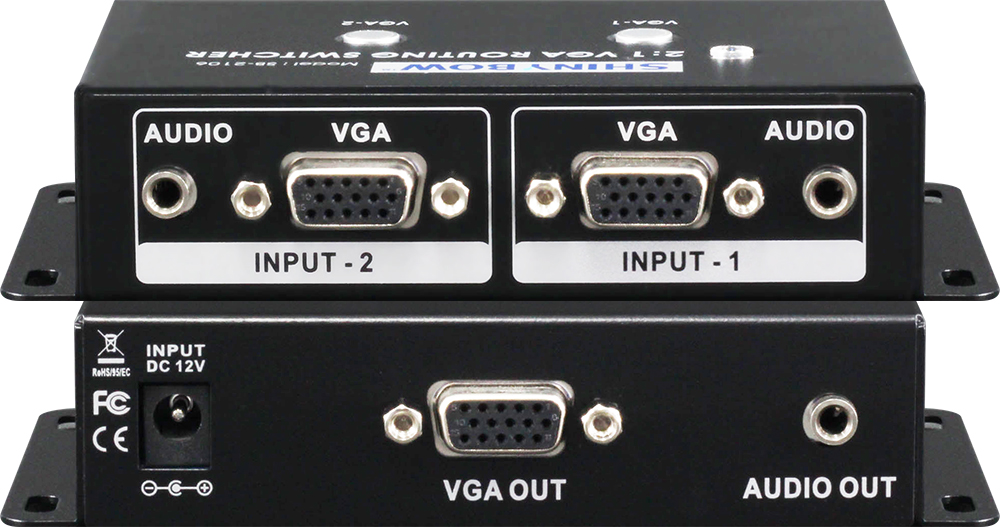

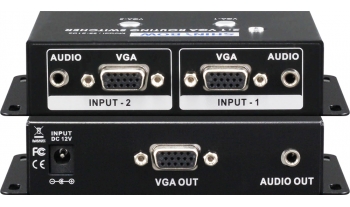

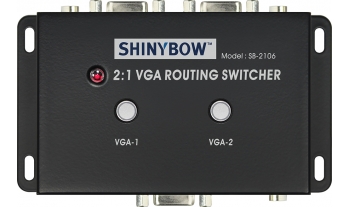

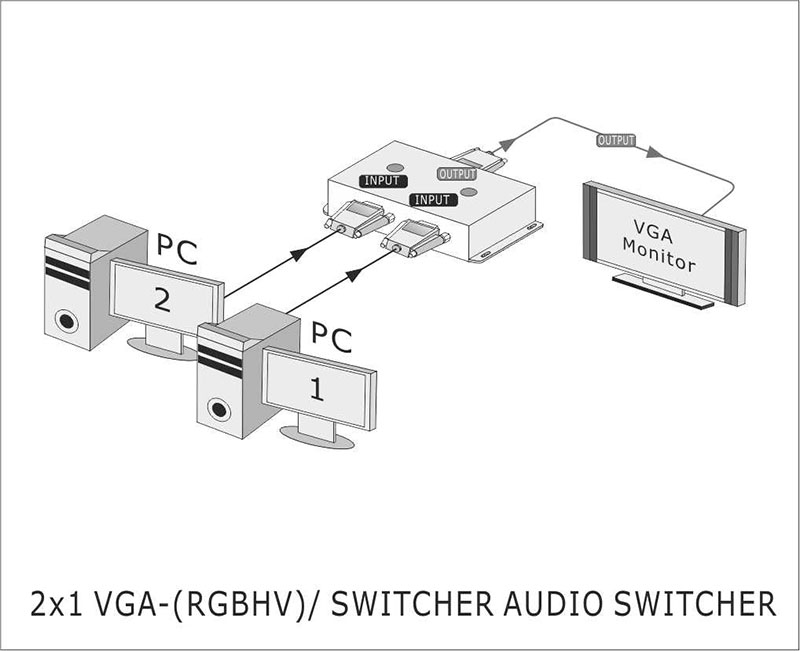

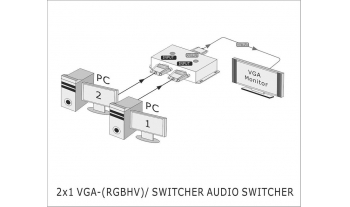

2x1 VGA-STEREO AUDIO ROUTING SWITCHER
2x1 VGA-STEREO AUDIO ROUTING SWITCHER
Inputs :
2x VGA(RGBHV) , 2x STEREO AUDIO (AR/AL)
Output :
1x VGA(RGBHV) , 1x STEREO AUDIO (AR/AL)
- Introduction
- Features
- Specifications
-
SB-2106 is a high speed Video Bandwidth 310MHz, Maximum
380MHz VGA and Audio switcher router product. It’s one of the
most innovative VGA/RGBHV and STEREO AUDIO(AR/AL)
switching product.There’s a two inputs switcher router, any
input may be routed to any output. It completely eliminates the
need to constantly move around VGA and Stereo Audio input
and output cables. It is suited to full HD LCD TV or Plasma
display monitor applications.
-
1. Support 2 inputs to 1 output VGA/Audio Switcher Router 2. Support PC Resolution VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200), WUXGA (1900x1200) 3. Video Bandwidth : 380MHz (-3dB), 200 mVp-p 4. Excellent Video(VGA-RGBHV) and Stereo Audio Performance 5. Audio Frequency Respond : 20Hz ~ 20KHz 6. Low all hostile crosstalk of -83 dB @ 5 Mhz 7. Excellent ESD rating : exceeds 4000 V 8. Switching RGBHV in LCD monitors and plasma displays 9. Suitable for full HD high resolution Video player device and LCD/Prasma monitor displays 10. Front pushbuttons with LED readout 11. Support Lower power consumed full load under 550 mA 12. Power supply offer a universal type 100~230 VAC switch -
