SB-5588LCM

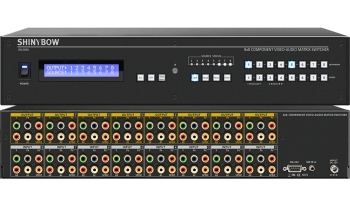

8x8 COMPONENT•DIGITAL•AUDIO MATRIX SWITCHER
8x8 COMPONENT•DIGITAL•AUDIO MATRIX SWITCHER
| Input : 8x COMPONENT(YPBPR), DIGITAL AUDIO (PCM), Stereo Audio (AR/AL) |
| Output : 8x COMPONENT(YPBPR), DIGITAL AUDIO (PCM), Stereo Audio (AR/AL) |
- Introduction
- Features
- Specifications
- SB-5588 is a high speed Video Bandwidth 325MHz Matrix Router Switcher product. It’s one of the most innovative Component Video (YPbPr), Digital Audio (PCM) and Stereo Audio (AR/AL) switching products on the market today. Stereo Audio output support the Volume control (+0~+100 levels) and Balance adjusting (L=0~50, R=51~100) function. Support 19 inch Ear mount pair part number #2U-440L. It has 8 individual inputs with 8 individual outputs. Because it is a matrix router, any input may be routed to any output; or the same input may be routed to all outputs or any combination. It completely eliminates the need to constantly move around Component Video, Digital Audio and Stereo Audio input and output cables. This matrix switcher is ideally suited for full HDTV for the resolution of 480p, 720p. Control is provided via front pushbuttons with LED readout or IR remote controller. A RS-232 interface is provided for interfacing with third party control. A Windows-based control software package is included to provide complete control of the SB-5588 from a PC.
-
1. Support 8 inputs to 8 outputs Component-Digital-Audio Matrix Switcher 2. Support HDTV Resolution 480i, 480p, 576p, 720p 3. Video Bandwidth : 325MHz (-3dB), 200 mVp-p 4. Excellent Video(Component), Digital Audio and Stereo Audio Performance 5. Audio Frequency Respond : 20Hz ~ 20KHz 6. Stereo Audio output support Volume(+0~+100 levels) and Balance (L50~R50) control function. 7. Low all hostile crosstalk of -83dB @ 5MHz 8. Excellent ESD rating : exceeds 4000 V human body model 9. Switching Component Video YPbPr, Digital Audio(PCM) and Audio signals 10. Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays 11. Direct selection and confirm via Front pushbuttons with LED readout 12. Infrared : IR remote control (38KHz) 13. Support RS-232 interface control driver for 95/98/2000/xp A Windows-based control software Driver packaged 14. RS-232 protocol list with manual attached 15. Enclosure type : Support 19 inch Ear & 2RU Rack mountable pane 16. Support Lower power consumed full load under 1500 mA 17. Power supply offer a universal type 100~240 VAC switch -
Type of switcher 8 inputs to 8 outputs Component-Digital-Audio Matrix Switcher Video Bandwidth 325MHz, (-3dB) 200 mV p-p, 380MHz, (-3dB) 2V p-p,
R=325MHz, G=325MHz, B=325MHz, Digital=110MHz, Audio=60MHzAudio Bandwidth 60MHz, (-3dB)(Audio-Right=60MHz, Audio-Lift=60MHz) Audio Frequency Respond 20Hz ~20KHz Audio Volume control +0 ~ +100 levels (+6db) Audio Balance control L=+0 ~ +50, R=+51 ~ +100 Gain Flatness 90MHz, 0.1dB Differential Gain Error 0.01%, 0.1dB Differential Phase Error 0.02, 0.1dB (RL=150W) Fast settling time 15ns To 0.1% All Hostile Crosstalk -83dB @ 5MHz, -54dB @ 50MHz Slew Rate 1000 V/us, G=+1,2 V Step High OFF Isolation -100dB @ 10MHz Output Current 100 mA Low power CMOS 550 uA Quiescent Current Controls IR Remote Controller(38KHz), Front panel selection buttons with
LED readout and RS-232 PC controlSafety Approvals CE, FCC, VCCI Dimension (WxDxH) 17.32" x 7.80" x 3.43" (440mm x 200mm x 88mm) Weight 3.4 kg / 7.5 lb Power Voltage Input DC 12V @ 2A
