4x2 COMPONENT-DIGITAL-OPTICAL-AUDIO MATRIX SWITCHER
SB-5526

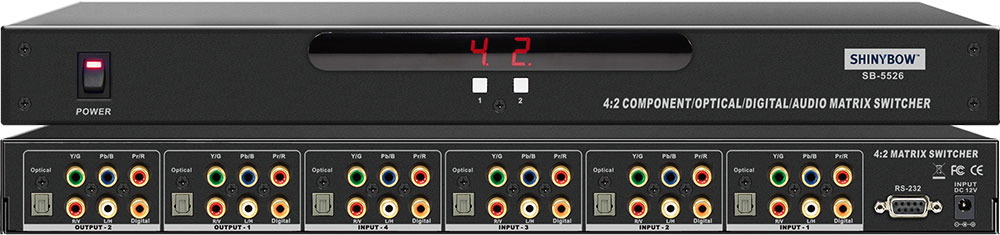

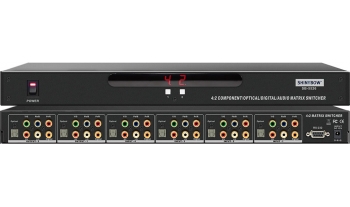

4x2 COMPONENT-DIGITAL-OPTICAL-AUDIO MATRIX SWITCHER
Input :
4x COMPONENT(YPBPR), DIGITAL AUDIO (PCM),
OPTICAL(Toslink), Stereo Audio (AR/AL)
Output :
2x COMPONENT(YPBPR), DIGITAL AUDIO (PCM),
OPTICAL(Toslink), Stereo Audio (AR/AL)
  • Introduction
  • Features
  • Specifications
  • SB-5526 is a high speed Video Bandwidth 325MHz Maximum 380MHz Matrix Router Switcher product. It’s one of the most innovative Component Video (YPbPr) Digital Audio(PCM), Optical(Toslink) and Stereo Audio(AR/AL) Switching products on the market today. Support 19 inch Ear mount pair part number #1U-440L. It has 4 individual inputs with 2 individual outputs. Because it is a matrix router, any input may be routed to any output; or the same input may be routed to all outputs or any combination. It completely eliminates the need to constantly move around Component Video, Digital Audio and Stereo Audio input and output cables. This matrix switcher is ideally suited for full HDTV for the resolution of 480p, 720p. Control is provided via front pushbuttons with LED readout or IR remote controller. A RS-232 interface is provided for interfacing with third party control. A Windows-based control software package is included to provide complete control of the SB-5526 from a PC.
  • 1. Support 4 inputs to 2 outputs Component-Digital-Optical-Audio Matrix Switcher
    2. Support HDTV Resolution 480i, 480p, 576p, 720p
    3. Video Bandwidth : 325MHz (-3dB), 200 mVp-p
    4. Excellent Video(Component), Digital Audio, Optical and Audio Performance
    5. Audio Frequency Respond : 20Hz ~ 20KHz
    6. Low all hostile crosstalk of -83dB @ 5MHz
    7. Excellent ESD rating : exceeds 4000 V
    8. Switching Component Video YPbPr, Digital Audio(PCM) and Audio signals
    9. Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays
    10. Direct selection and confirm via front pushbuttons with LED readout
    11.  Infrared : IR remote control (38KHz)
    12. Support RS 232 interface control driver for 95/98/2000/xp A Windows-based control software Driver packaged
    13. RS 232 protocol list with manual attached
    14. Enclosure type : Support 19 inch Ear & 1RU Rack mountable pane
    15. Support Lower power consumed full load under 1500 mA
    16. Power supply offer a universal type 100~240 VAC switch
  • Type of Switcher 4 x 2 Component Video/Optical/Digital Audio and Stereo Audio Matrix Switcher
    Type of Signal Component Video/Optical/Digital Audio and Stereo Audio connectors
    Complete Solution Fully Buffered inputs and outputs
    Channel switching 15ns
    Scan rates accepted 50Hz or 60Hz
    Video Performance 90MHz 0.1dB Gain Flatness, 0.01% Differential Gain Error
    Differential Phase Error 0.02, 0.1dB (RL=150)
    Video Bandwidth 380MHz, (-3dB) 200mVp-p, 310MHz (-3dB) 2Vp-p
    High resolution Refresh for HDTV 408p, 576p, 720p, 1080i60, 1080p60
    Digital Bandwidth 110MHz
    Audio Frequency Respond 20Hz~20KHz, +0.05dB
    Slew rate 1000 V/us
    OFF isolation -100dB @ 10MHz
    All Hostile Crosstalk -84dB @ 5MHz, -54dB @ 50MHz
    Digital Coaxial (S/PDIF) Digital Audio (PCM) 10Mbps
    Optical (S/PDIF) in/out Toslink (PS:OC3=STM1=155.52 Mbps)
    Controls IR remote controller, front pressed buttons with LED readout, RS-232
    Safety approvals CE, FCC, VCCI
    Dimension (WxDxH) 17.41" x 7.87" x 1.74" (442mm x 200mm x 44mm)
    Weight 2.45 kg / 5.4 lb
    Power Supply DC12V/2A
