4x4 VGA MATRIX SWITCHER
SB-4140
4x4 VGA MATRIX SWITCHER
Input : 4x VGA(RGBHV)
Output : 4x VGA(RGBHV)
  • Introduction
  • Features
  • Specifications

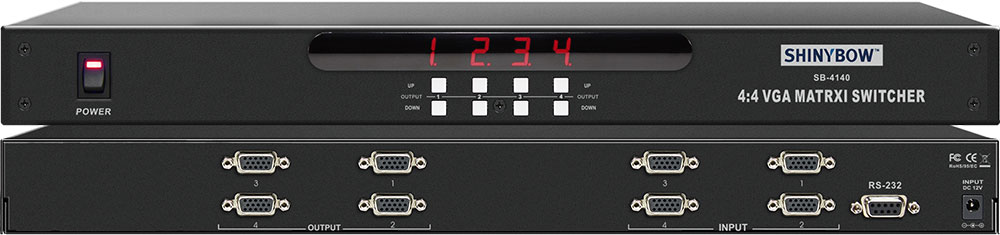

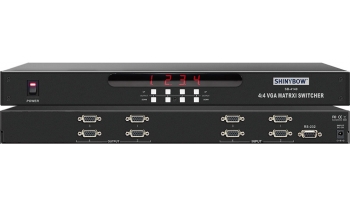

  • SB-4140 is a high speed Video Bandwidth 310MHz, Maximum 380MHz VGA (4) in To (4) out Matrix switcher product. It’s one of the most innovative VGA (RGBHV) signals switching product. Support 19 inch Ear mount pair part number #1U-440L. It support (4) individual inputs with (4) individual outputs. Because it is a matrix routing switcher, any input may be routed to any output. It completely eliminates the need to constantly move around VGA input and output cables. This switcher is ideally suited for full HD High Definition LCD HDTV Television for VGA (R,B,G,H,V) signals or HD Plasma display monitor resolution applications. Control is provided front panel push buttons, IR remote or RS-232. A RS-232 Windows GUI interface is provided for matrix routing control (Windows only).
  • 1. Support 4 inputs to 4 outputs VGA Matrix Switcher
    2. Support PC Resolution VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200), WUXGA (1920x1200)
    3. Video Bandwidth : 380MHz (-3dB), 200 mVp-p
    4. Low all hostile crosstalk of -83dB @ 5MHz
    5. Excellent ESD rating : exceeds 4000 V
    6. Switching RGBHV in LCD monitors and plasma displays
    7. Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays
    8. Direct selection and confirm via Front push buttons with LED readout
    9. Infrared : IR remote control (38KHz)
    10. Support RS-232 interface control driver for 95/98/2000/xp A Windows-based control software Driver packaged
    11. RS-232 protocol list with manual attached
    12. Enclosure type : Support 19 inch Ear & Rack mountable panel
    13. Support Lower power consumed full load under 950 mA
    14. Power supply offer a universal type 100~240 VAC switch
  • Type of switcher 4 inputs to 4 outputs VGA Matrix Switcher
    Video Bandwidth              380MHz, (-3dB) 200 mV p-p, 310MHz, (-3dB) 2V p-p, R=325MHz, G=325MHz, B=325MHz, H=110MHz, V=110MHz
    Gain Flatness 90MHz, 0.1dB
    Differential Gain Error 0.01%, 0.1dB
    Differential Phase Error 0.02, 0.1dB (RL=150 W)
    Fast settling time 15ns To 0.1%
    All Hostile Crosstalk -84db @ 5MHz, -54dB @ 50MHz
    Channel Crosstalk -56db @ 100MHz
    Slew Rate 1000 V/us, G=+1,2 V Step
    High OFF Isolation -100dB @ 10MHz
    Output Current 100 mA
    Low power CMOS 550 uA Quiescent Current
    Control IR Remote Controller (38KHz), front panel selection buttons with LED readout and RS-232 PC control
    Safety Approvals CE, FCC,VCCI, Erp, WEEE
    Dimension (WxDxH) 17.32" x 7.80" x 1.73" (440mm x 200mm x 44mm)
    Weight 2.45 kg / 5.4 lb
    Power Voltage Input DC 12V @ 1.25A
