SB-2834

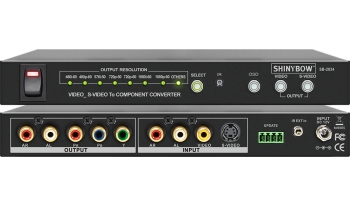

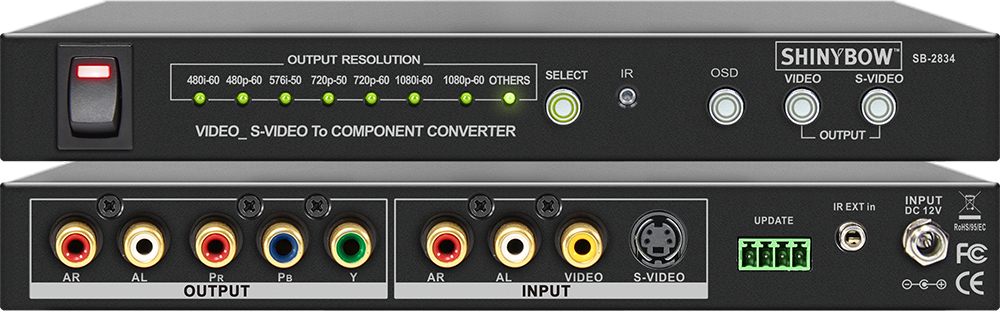

VIDEO / S-VIDEO To COMPONENT CONVERTER
VIDEO / S-VIDEO To COMPONENT CONVERTER
Input : 1x Composite Video, 1x S-Vidoe,
1x Stereo Audio(AR/AL)
Output : 1x Component(YPBPR),
1x Digital Audio, 1x Audio
- Introduction
- Features
- Specifications
-
01. Support CVB S/ SV to Component Video Converter02. Inputs Video : 1x Composite Video & 1x S-Video (Y/C)Audio : 1x Stereo Audio (AR/AL)Out put s Video : 1x Component Video (YPBPR)Audio : 1x Digital Audio (PCM), 1x Stereo Audio (AR/AL)03. Automatic detection TV Standards system NT SC-M3.58, NT SC-JEia, PAL,PAL-N, PAL-60, PAL-M input system04. Automatic control UP and Dow n Screen when Video or S-Video in/out05. Direct Selection the Component Video 480p / 720p / 1080p Resolutions out put06. Support 5% of overscan range of HDTV Screen output07. Support Screen up/ down and adjusted
-
Input Signals Video : Composite Video 1x RCA & 1x S-Video(Y/C) &
1x 4p Mini -Din Connector
Audio : Stereo Aud io(AR/AL) 2x RCA & Digital Audio via
1x RCA ConnectorOutputs Signals Video : Component Video (YPBPR) via 3x RCA connectors
Audio : Stereo Audio (AR/AL) 2x RCA ConnectorsOutput Selection Direct Component Video Resolution and
Frequency 50/60Hz Output SelectionsVideo Bandwidth 20 0M Hz, (-3dB) Audio Frequency Respond 50 MHz, (-3dB) Audio Bandwidth 20 Hz~ 20 KHz Safety Approvals CE, FCC Dimension (WxDxH) 8.27" x 4.49" x 1.06" (210mm x 114mm x 27mm) Power Supply 12VDC, Universal type 50/60Hz 100~230 VAC, 2A Weight 0.7 kg / 1.54 lb
