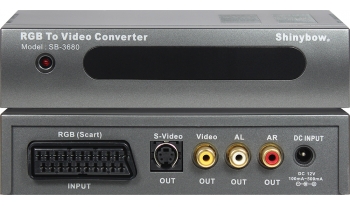

SCART-RGB To S-VIDEO/VIDEO/AUDIO CONVERTER
SB-3680
SCART-RGB To S-VIDEO/VIDEO/AUDIO CONVERTER
Input : 1x SCART(RGB), 1x Stereo Audio
Output : 1x S-Video, 1x Composite Video, 1x Stereo Audio

  • Introduction
  • Features
  • Specifications

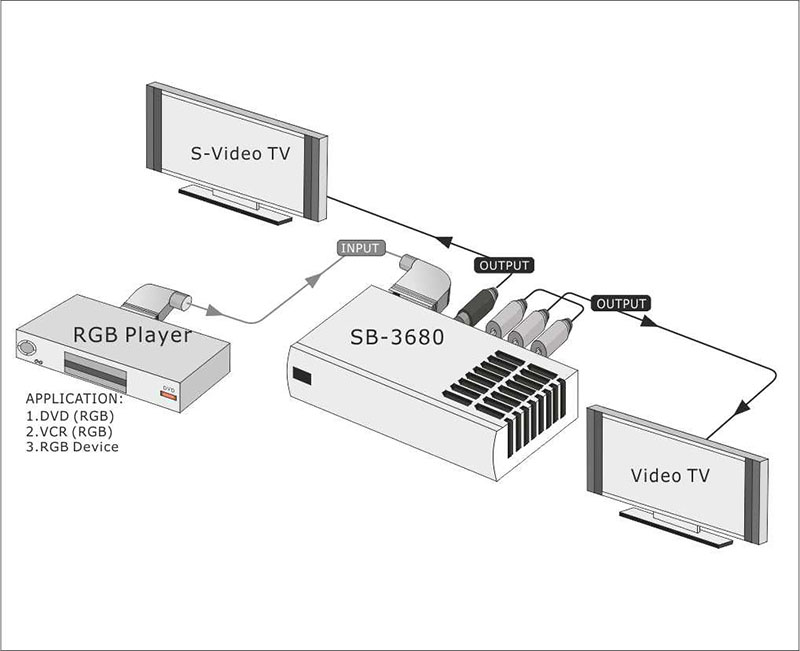

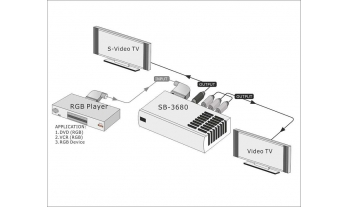

  • SB-3680 is one of the most innovative SCART ( RGB) Decoder products. It converts RGB signals from SCART plug device (full pin connected) in to S-Video or Composite Video and Stereo Audio signals. It is perfect for SCART (RGB) Video device, such as Video Game Consoles, Video CDs, DVDs, Satellite Receivers, CATV Set Top Boxes, and works well with TV set. The video from output of S-Video and Composite Video will be showed simultaneously.
  • 01. SCART To S-Video / Composite Video / Audio Converter

    02. Support S-Video (Y/C) 100Vpp/75Ω and Stereo Audio (AR/AL)

    03. Video Bandwidth: 80MHz (-3dB)

    04. Audio: Stereo Audio (AR/AL)

    05. Gain Flatness: 0.1dB to 20MHz, RL=150Ω

    06. Differential Gain Error: 0.03%, RL=150Ω

    07. Differential Phase Error: 0.030,RL=150Ω

    08. Switch SCART input signals to video signals for TV monitors and plasma displays

    09. It is also suitable for SCART RGB signals

    10. Terminals: SCART plug, Mini-4din Female, RCA connectors

    11. Safety approvals: CE, FCC, VCCI

    12. Dimension (WxDxH): 6.02" x 3.07" x 1.42" (153mm x 78mm x36mm)

    13. Power Supplyt: DC12V / 1A

    14. Weight : 0.25 Kg / 0.55 lb
