8x2 MultiVideo To HDMI-VGA Matrix Switcher
8x2 MultiVideo To HDMI-VGA Matrix Switcher
8xInputs: 2xCVBS/SV/Audio, 2xComponent Video-Audio, 2xVGA-Audio, 2xHDMI
2xGroups : (1xVGA, 1xHDMI, 1xSPDIF, 1xAudio)
  • Introduction
  • Features
  • Specifications

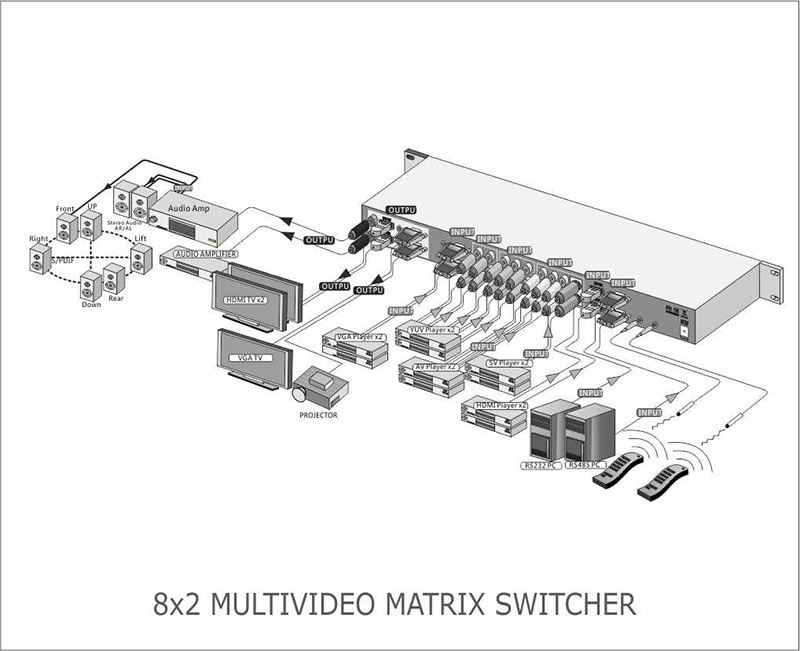

  • The SB-3877 is a Multi-Video switcher featuring 8 inputs and 2 outputs
    (independent of each other) making this a true Matrix Routing Switcher.
    The inputs are comprised of: 2x HDMI, 2x Composite Video w/Audio,
    2x S-Video w/ A udio, 2 x Component video w/Audio and 2x VGA w/Audio.
    The outputs are 2x HDMI w/Digital Audio, 2x VGA w/Audio. Note that you
    can use BOTH the VGA Output and the HDMI Output simultaneously
    giving you 2 outputs per channel for a total of 4 outputs per chassis.
    When switching between sources, the output will fade to black then
    fade-in to the new source you selected. Formats supported are
    NTSC/PAL/SECAM video systems allowing you to do format conversion.
    Supports High Definition Digital signal with data rates enabling 1080p
    formats or if in PC resolution (1920x1200). Audio is presented on all
    outputs regardless of selected video signal type and the volume control
    is set for either output channel or independent of each other. It completely
    eliminates the need to constantly move around HD input and output cables.

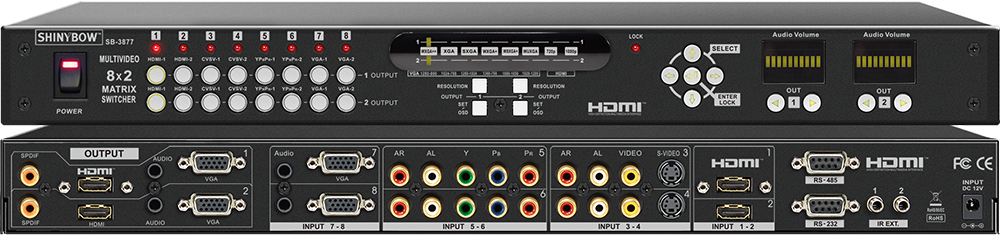

    Control is provided via front push buttons with LED readout or IR remote
    controller. A RS-232 interface is provided for interfacing with third party control
    or using the provided software. Input cable equalizer enables use of long cable
    runs of more than 50 feet (15 meters) when using 24 AWG cable at 1080i .
    A windows-based control software package is included to provide
    complete control of the SB-3877 from a PC.


  • 1. Support 8 inputs to 2 outputs Matrix SwitcherMultivideo signal as VGA/ S-Video/Composite
      Video/Component Video/Audio/HDMI
    2. Inputs :
      2x AV, 2x S-Video/Audio, 2x Component/Audio & 2x VGA/Audio,
      2x HDMIOutputs: 2x (VGA+Stereo Audio), 2x HDMI
    3. Automatically input TV standards composite video/S-Video and HDTV Component Video 50/60Hz,
      480p, 720p and 1080i/p system detection
    4. Automatically scan 8 input video sources displays by LED on front panel
    5. Direct video input selection by front panel buttons with LED readout
    6. Direct VGA output resolution selection. VGA resolution up to 1920x1200 HD
    7. Auto Scaling Video picture up and down,
    8. Adjust Stereo Audio Value on front panel
    9. OSD (on screen display) for menu color, resolution and input sources selection
    10. HDMI and HDCP Compliant
    11. Support RS232 interface control driver for win 95/98/2000/xp
    12. An IR transceiver on the front panel by infrared remote control and an IR External port on the rear
      panel support extend distance about 300Mt.
    13. Support desktop with Ear mount and 19 inch Rack mountable type panel
  • 1. Video Scaling outputs
      2x via HD-15 Female connector, (Audio : 4x RCA & 2x OD3.5 connectors )
    2. Video Input Signals
      TV standards :
      NTSC-M 3.58, NTSC-J 4.43, PAL-B-D-I-G-H-K, PAL-M,
      PAL-N COMB-N, SECAM (Impedance:75 ohms)
      Composite Video : 2 x via RCA connectors
      S-Video(Y/C) : 2 x via 4 pin Mini-Din Female connectors
      Component Video(YPBPR) : 6x via RCA connectors
      PC-VGA(RGBHV) : 2x via HD-15 Female connectors
      HDMI : Digital Video (TMDS), Digital Audio (PCM), 2x HDMI connectors
    3. OSD menu selections & Adjustments
      Input sources : 1 & 2 HDMI, 3 & 4 AV, 5 & 6 Component Video/Audio, 7 & 8 VGA
      Color : Contrast, Brightness, Sharpness, Level and TINT
      VGA output resolutions: VGA, SVGA, XGA, SXGA, WXGA, WSXGA+, WUXGA
    4. Video bandwidth : 400MHz, (-3 d B), Audio Bandwidth: 60MHz, (-3 d B)
    5. Audio Frequency Respond: 20Hz~20KHz
    6. Safety Approvals: CE, FCC, RoHS(2002/95/EC)
    7. Dimension(LWH): 19”x 7.87”x 1.75”(482mm x 200mm x 44mm)
    8. Power Supply: 12VDC/3A
