SB-3685

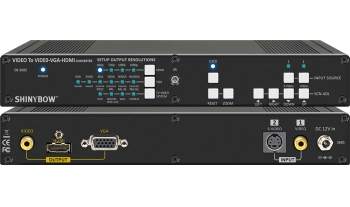

Video To HDMI Scaler Switcher
Video To HDMI Scaler Switcher
Input : 1x Video, 1x S-Video
Output : 1x VGA, 1x HDMI, 1x Video
- 產品介紹
- 產品特色
- 產品規格
-

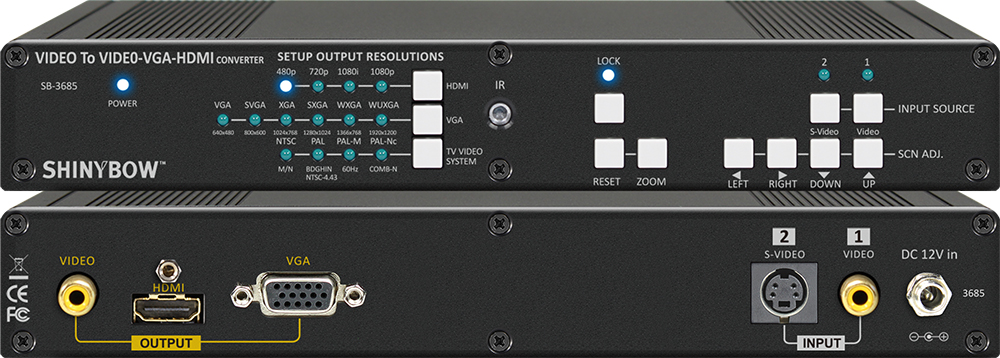

The SB-3685 is a high performance video graphics scaler supporting two (2)different video Input signal types including 1xComposite Video , 1xS-Videoand one(1) output including 1x HDMI™ , VGA and 1xComposite Video. ALLOutput ports are active simultaneously. This scaler supports HDMI™ 1.3formats and HDCP 1.2 Compliant. The SB-3685 Auto-detects the Input videostandard in the form of NTSC,PAL and SECAM systems and converts to HighDefinition RGB digital HD signal. The scaler supports full HDTV resolution 480i/p,576i/P, 720p or 1080i/p-60Hz formats, higher DVI resolution up to 1920x1200.Zoom management can be selected between 5 modes. Input resolutions canbe scaling up to 1080p and scaling down to 480p. Support menu for controllingbrightness, contrast and saturation. Control is provided via front panel buttonswith LED display and wireless IR remote control.
-
01. Composite Video / S-Video To HDMI, VGA and Composite Video Scaler02. Inputs : 1x Composite Video, 1x S-Video03. Outputs : 1x HDMI, 1xVGA, 1x Composite Video04. HDMI Video Scaler Support HDMI 1.3, HDCP 1.2 Compliant05. Support VGA output resolution VGA 640x480, SVGA 800x600, XGA1024x768, WUXGA 1920x120006. Support Multi-TV Video Standard System Inputs and Outputs :NTSC3.58, NTSC-J, PAL, PAL-N, PAL-N Com-n, PAL-M, PAL6007. Support menu for controlling brightness, contrast and saturation08. Zoom management can be selected between 5 modes09. Provide IR remote control (38KHz)10. Various User Interface control :• Front Panel push button• IR wireless remote control
11. Power supply DC12Volt, Universal Type switch 100~240VAC, 50/60Hz
-
