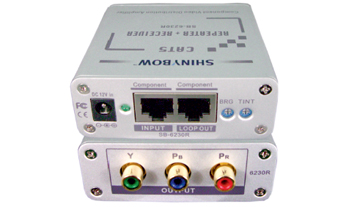

SB-6230R
2xWay Component Receiver
2xWay Component Receiver
Inputs :
1x Rx Receiver 1x Repeater(Loop Output)
Output :
1x Component Video(YPBPR)
- 產品介紹
- 產品特色
- 產品規格
-
%20TRANSMITTER%201.jpg)
-

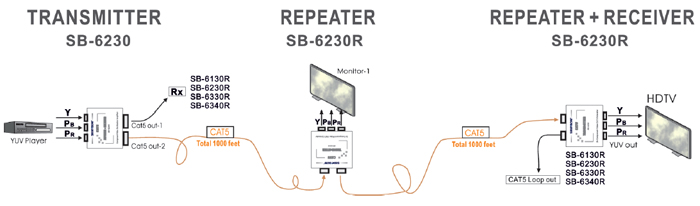

1. Support Component Video (YPBPR) CAT5 Transmitter/Receiver/Repeater 2. Provided by the Category5 cable via RJ-45 connector 3. SB-6230 : 2x Tx-Transmitter via RJ-45 connector 1x input of Component Video(YPBPR) via 3x RCA connectors SB-6230R : 1x Rx-Receiver via RJ-45 connector 1x Rxx-Repeater Loop Output via RJ-45 connector 1x output of Component Video(YPBPR) via 3x RCA connectors 2x VR for TINT and BRIGHTNESS adjustment. 4. Support HDTV Resolution 480p / 720p / 1080i / 1080p 5. R.G.B.TINT and BRIGHTNESS adjustment. 6. Extension distance is up to 300m(1000ft) 7. Enclosure : wall mount ear includes -
1. Type of CAT5 : CAT5 Transmitter(Tx)/Receiver(Rx)/Repeater(Rxx) 2. Type of Signals : Component Video (YPBPR) Via 3x RCA connectors 3. CAT5 Connection : Provided by the Category5 cable via RJ-45 connectors 4. Support CAT5 Repeater(Rxx) for Loop output to Another CAT5 Receiver 5. Video Bandwidth : 225MHz(-3dB), 450MHz(-3dB) Large signal bandwidth 6. Output Balance Error : -60dB@50MHz 7. High Isolation between Amplifier 80dB@10MHz 8. Color Proofread : TINT and BRIGHTNESS adjustment. 9. HD resolutions : 480i.480p.720p.1080i and 1080p 10. CAT5 Extend Distance : 300M(1000FT) Maximum 11. Enclosure : wall mount ear includes 12. Safety Approvals : CE, FCC, VCCI & RoHS(2002/95/EC) 13. Dimension : 3.07” x 2.87” x 1.14” (78mmx73mmx29mm) 14. Net Weight (Unit Only) : About 0.18kg/0.40 lb 15. Power Supply : DC 12V /1A Max Universal Switch Type 50/60Hz, 100~240VAC.
