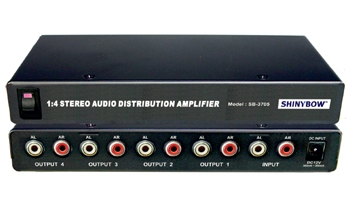

SB-3705 is a 1 input to 4 outputs stereo audio distribution amplifier. The Audio Bandwidth is 60MHz. It’s one of the most innovative stereo audio(AR/AL) distribution amplifier product in the market now Its input may be distributed to any 4 outputs, and completely eliminates the need to constantly move around cables connected to inputs and outputs. This distribution amplifier is ideal for distributing audio sources from VCRs, Camcorders, Video Game Console, Video CDs, DVDs, Satellite Receivers, CATV Set-Top Box, High Definition LCD TV, Plasma display monitor and any other Audio Amplifier applications.
-
1. Support 1 input to 4 outputs Stereo Audio Distribution Amplifier 2. Distributing Stereo Audio(AR/AL) 3. Audio Bandwidth : 60Mhz 4. Excellent distributing with Stereo Audio Performance 5. Audio Frequency Respond : 20Hz ~ 20KHz 6. Suitable for distributing Audio Sources from HD high resolution Video player device To LCD/Plasma monitor display’s Audio or Audio Amplifier 7. Enclosure type : Support Wall 1 inch high Rack mountable 8. Support lower power consumed full load under 180 mA 9. Power supply offer a universal type 100~230 VAC switch -
1. Type of distributor : 1 input to 4 outputs Stereo Audio Distribution Amplifier 2. Type of Signals : Stereo Audio(AR/AL) 3. Audio Bandwidth : 60MHz 4. Audio Frequency Respond :20Hz ~20KHz 5. Differential Phase Error : 0.02 , 0.1 dB (RL=150) 6. Fast settling time: 15ns To 0.1% 7. All Hostile Crosstalk : -84 db @ 5 MHz, -54 dB @ 50 MHZ 8. Channel Crosstalk : -56 db @ 100 Mhz 9. Slew Rate : 1000 V/us, G=+1,2 V Step 10. High OFF Isolation : -100 dB@10MHz 11. Low power CMOS : 550 uA Quiescent Current 12. Safety Approvals : CE, FCC, RoHS(2002/95/EC) 13. Dimensions (W.D.H.) : 6.90" (176mm) x3.11" (80mm) x 1.00" (25mm) 14. Net Weight (Unit Only) : About 0.5kg/1.1 lb 15. Power Voltage Input : DC 12V @ 0.42A
