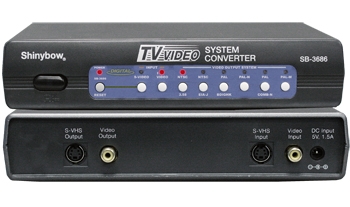

NTSC/PAL Digital CONVERTER
SB-3686
NTSC/PAL Digital CONVERTER
Inputs :
1x Composite Video, 1x S-Video(Y/C)

Outputs :
1x Composite Video, 1x S-Video(Y/C
  • 產品介紹
  • 產品特色
  • 產品規格
  • The upgraded SB-3686 uses digital process to convert NTSC/PAL television signal to NTSC or PAL. This product also regenerates sync- pulse and can help stabilize poor quality video signals such as video from multi- generation video tape. Composite and S-Video inputs which manual pressed on the rear provides users different choices of video inputs.  Besides, selection buttons on the front panel enable users to switch between video from video or S-video sources, and also different TV system including NTSC 3.58, NTSC EIA-J, PAL BDIGHK, PAL-N, PAL Comb-N, PAL-M.

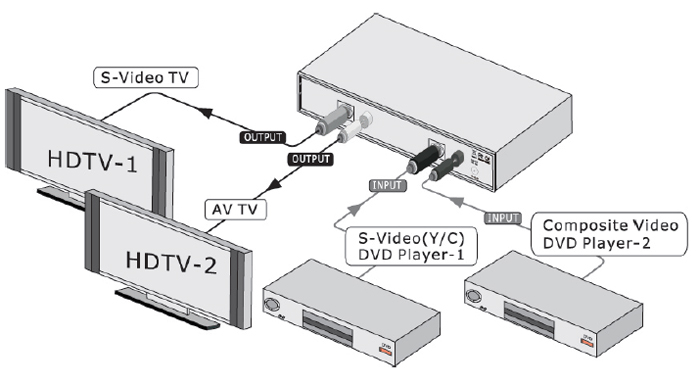

    SB-3686 NTSC PAL  To  NTSC PAL DIGITAL CONVERTER

  • 1. Support NTSC / PAL To NTSC / PAL Digital Converter
    2. Input : 1x S-Video(Y/C) + 1x Composite Video
      Output : 1x S-Video(Y/C) + 1x Composite Video
    3. Auto Scan TV Standard System Inputs:
      NTSC3.58, NTSC-J, PAL, PAL-N, PAL-N Com-n, PAL-M, PAL60
    4. Support Composite Video or S-Video Output System : NTSC3.58, NTSC-J,
      PAL, PAL-N, PAL-N Com-n, PAL-M
    5. Auto Line Field Control NTSC-525 / PAL-625 function
    6. Direct Video, S-Video inputs selections
    7. Direct TV System NTSC3.58, NTSC-J, PAL, PAL-N, PAL-N Com-n, PAL-M selections
    8. Support low power switch DC 12V
  • 1. Type of Converter: NTSC/PAL To NTSC/PAL Digital Converter
    2. Type of Signal: S-Video(Y/C)/Composite Video connectors
    3. Color Subcarrier Frequency: NTSC-3.58 / NTSC-J 4.43
      PAL-4.433619 / PAL-M 3.575611 / PAL-N 3.582056 Mhz / PAL-60
    4. Video Output: 0.5 V-pp~2V-pp,75 Ohms.
    5. PAL/NTSC line Conversion: 525 625Lines
    6. PAL/NTSC Field Conversion: 50 60 Hz Fields
    7. Safety Approvals: CE, FCC, RoHS,VCCI
    8. Dimension: 9.45”x 5.71”x 1.77” (240mmx145mmx45mm)
    9. Power Supply: 12VDC, 100~230 VAC Universal Switch.
    10. Net Weight (Unit Only) : About 0.5kg/1.1 lb
