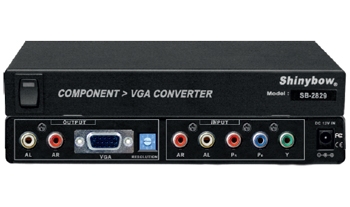

SB-2829
COMPONENT To VGA CONVERTER
COMPONENT To VGA CONVERTER

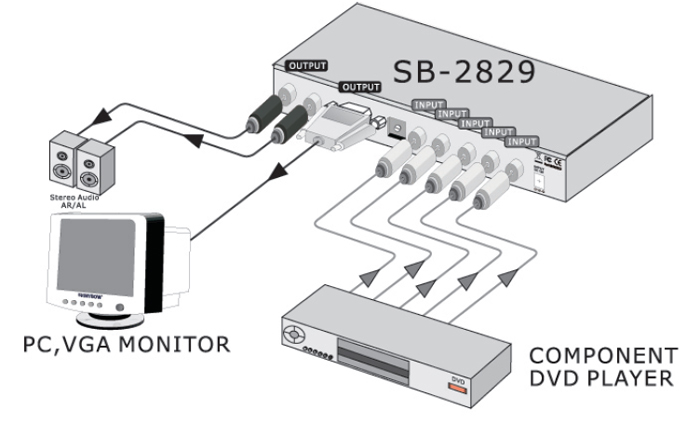

Inputs :
1x Component Video(YPBPR), 1x Stereo Audio
Outputs :
1x VGA(RGBHV), 1x Stereo Audio
- 產品介紹
- 產品特色
- 產品規格
-
-
1. SCART to VGA Converter 2. Inputs Video : 1x RGB, 1x Composite Video & 1x S-Video (Y/C) Audio : 1x Stereo Audio(AR/AL) Outputs Video : 1x VGA (RGBHV) Audio : 1x Digital Audio(PCM), 1x Stereo Audio(AR/AL) 3. Automatic detection of TV Standards system NTSC-M3.58, NTSC-J Eia, PAL, PAL-N, PAL-60, PAL-M input system 4. Automatic control Down Scaling and Up Scaling for Video in/out 5. SCART input supports signals of RGB, Video, S-Video and Stereo Audio 6. Support Digital Audio(PCM) output 7. Support wall mount type -
1. Input Signals Video: 1x RGB, 1x Composite Video & 1x S-Video(Y/C) via SCART Connector Audio: Stereo Audio(AR/AL) 1x SCART Connector 2. Outputs Signals Video : VGA(RGBHV) 1x HD-15P connector Audio : Digital Audio(PCM) 1x RCA connector, Stereo Audio 2x RCA connectors 3. Direct VGA resolution output selections 4. Video Bandwidth : 350MHz, (-3 d B), Audio Bandwidth: 50MHz, (-3 d B) 5. Audio Frequency Respond: 20Hz~20KHz 6. Safety Approvals: CE, FCC, RoHS 7. Dimension(LWH): 8.27”x 4. 49”x 1.06”(210mm x 114mm x 27mm) 8. Power Supply: 12VDC, Universal type 50/60Hz 100~230 VAC 9. Net Weight (unit only) :0.7 Kgs / 1.54 lb
